Maintaining accurate records of temperature measurements is vital for a wide range of industries. The EL-USB-1 Temperature Data Logger is a go-to, and versatile option for temperature data logging that can track up to 16,382 different temperature measurements, as well as record and store temperature readings between -35 and +80 C.
The device is perfect for measuring and tracking temperature in fridges and freezers, for transporting temperature-sensitive goods, preserving pharmaceuticals and vaccines, recording ambient temperatures and for many more applications.
A common question Instrument Choice scientists receive is, “How do I change the battery in this temperature data logger.” If this concerns you too, check out this short video – it has all your answers!

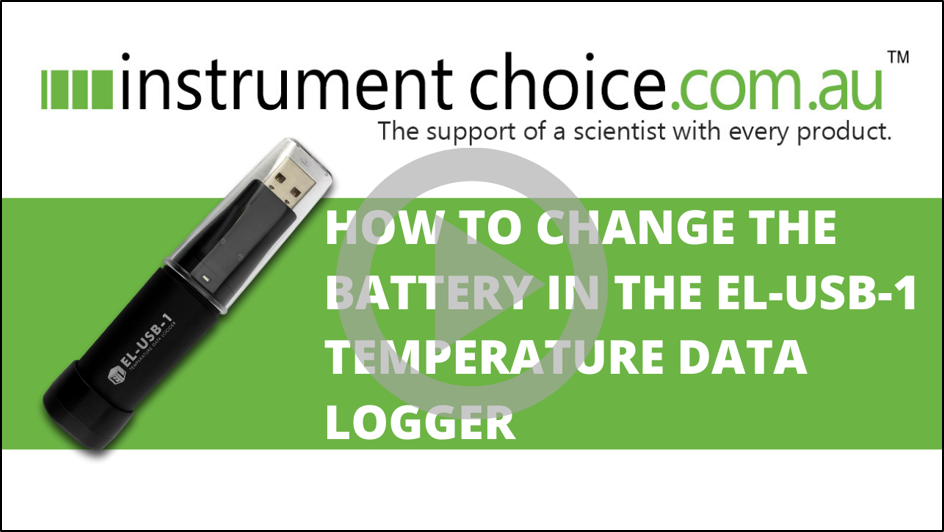

Figure 1 Watch an Instrument Choice scientist demonstrate how to change a battery in the EL-USB-1 Temperature Data Logger here.
How to change the battery in the EL-USB-1 Temperature Data Logger
You will need;
- EL-USB-1 Temperature Data Logger
- ER14250BH Battery for Lascar Data Loggers
- A pen or small screwdriver
To change the battery;
- (0:22) Remove the clear cap over the USB.
- (0:25) Locate the silver tab. The tab is near the two LED lights.
- (0:29) Use the pen or small screwdriver to press down carefully on the silver tab, then to reveal the battery cavity gently pull to separate the USB from the device body.
- (0:36) Insert the new ER14250BH battery. Ensure you observe the polarity so you don’t damage the temperature data logger.
- (0:39) To indicate the correct battery installation, a red, orange, and then a green LED light will flash.
- (0:44) Place the USB and body back together, ensuring the silver tab clicks back into place.
CONCLUSION
Following these six simple stress will ensure a fuss-free, safe battery replacement of your EL-USB-1 temperature data logger. Depending on use, and data frequency and storage, the battery in the EL-USB-1 should last approximately one year. If you encounter any issues or need a hand replacing the battery in your EL-USB-1 temperature data logger Contact an Instrument Choice Scientist.
