Instrument Choice's team of scientists regularly reviews new and popular products, so you can make informed decisions when searching for the perfect scientific instrument for your application.
This edition reviews the reliable and affordable LCD-V-1 LCD Vernier Type Digital Calipers, a precision measuring tool brimming with intelligent and user-friendly features.

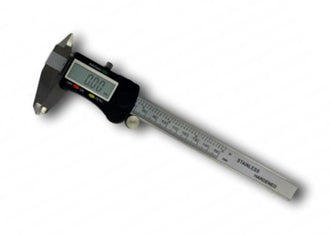

Introducing the LCD-V-1 LCD Vernier Type Digital Calipers
LCD-V-1 LCD Vernier Type Digital Calipers are rugged and precise tools for deployment anywhere you need to determine an object's internal or external dimensions.
LCD-V-1 LCD Vernier Type Digital Caliper Design
|
A. External measuring jaws |
G. ON/OFF button |
LCD-V-1 LCD Vernier Type Digital Caliper Features & Benefits
- Stainless steel design: The construction of the LCD-V-1 LCD Vernier Digital Caliper is surgical-grade stainless steel - tough enough to withstand heavy use across numerous applications and industries.
- Large LCD: Your results displayed on the extra-large and clear LCD will be visible from almost any angle.
- Metric and Imperial measurements: The scale has imperial and metric markings. Switch between imperial or metric displays with one button press.
- High Resolution: The LCD has a resolution down to 0.01mm to ensure exact measurements.
- Zero key: You can zero your calliper's reading from any point on the scale to meet the requirements of almost any measurement application.
- Durable plastic case: The kit includes a sleek, tough case for safely storing your LCD-V-1 LCD Vernier Type Digital Caliper when it's not in use.
- Performs multiple measurements: The LCD-V-1 features internal and external jaws and a depth blade for performing a range of measurements, including:
|
1. Outside Measurement
|
2. Inside Measurement
|
|
3. Step Measurement
|
4. Depth Measurement
|
|
5. Differential Measurement
|
|
LCD-V-1 LCD Vernier Type Digital Caliper Specifications
LCD-V-1 Specifications |
|
|
Measuring Range |
0 to 150mm |
|
Resolution |
0.01mm |
|
Accuracy |
0.02 (<100mm) |
|
Repeatability |
0.01mm |
|
Maximum Measuring Speed |
1.5m/second |
|
Measuring System |
Linear capacitive measuring system |
|
Display |
LCD |
|
Power |
1 x LR44 1.5V |
LCD-V-1 LCD Vernier Type Digital Caliper Applications
The LCD-V-1 is in common use in situations or industries like:
- Engineering
- Educational sector
- Steel industry
- Fitters
- Mechanic shops; and
- Research and laboratory applications.
Conclusion
What do our scientists conclude about the LCD-V-1 LCD Vernier Type Digital Caliper?
"Affordable, functional and easy-to-use, the LCD-V-1 LCD Vernier Type Digital Caliper is a welcome addition to any workshop, toolbox or laboratory where accurate dimensions need to be established."
Need more information on the LCD-V-1 LCD Vernier Type Digital Caliper? Speak with an Instrument Choice Scientist: Call 1300 737 871 or email customer-service@instrumentchoice.com.au.
