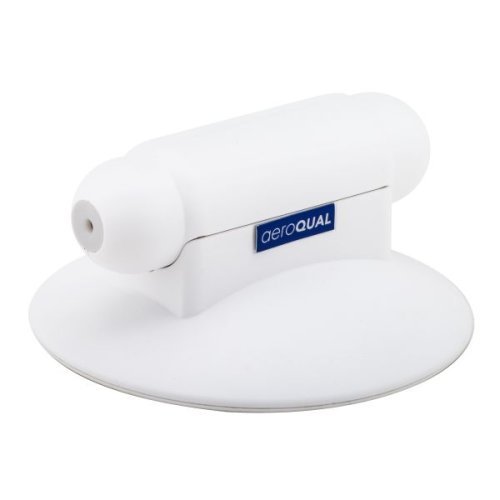

Series 900 Fixed Air Quality Monitor - IC-FM S900
Backorder Now, once ordered your item will dispatch before the 15th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).
The Series 900 Fixed Indoor Air Quality Monitor is a flexible monitor compatible with a wide range of gas sensors suited for indoor applications. The monitor can also be configured with a temperature and humidity sensor.
Regular price
$479.40 AUD
+ GST
$527.34 AUD Inc. GST
$527.34 AUD Inc. GST
The Series 900 Fixed Indoor Air Quality Monitor is a flexible monitor compatible with a wide range of gas sensors suited for indoor applications.The monitor can also be configured with a temperature and humidity sensor, if required. It is designed to measure and control gas concentrations and communicateto a variety of hardware systems. The indoor air quality meter can operate in three ways:
- As a relay controller with user configured set points to control an external device such as an ozone generator or initiate an alarm.
- As a gas transmitter via the 4-20 mA output which allows connection to a PLC or current sensing device to provide gas concentration information for applications such as health and safety monitoring.
- As a monitoring network via the RS485 digital output to enable gas monitoring at several indoor locations with information being logged to a central point.
The S900 Indoor Air Quality Meter is lightweight, discrete and easily wall mountable. It requires a 12V power supply which is user configured to allow flexibility in the locations it can be installed. The sensor heads are simple to replace and can be sent back to Aeroqual for recalibration. The sensor heads available with the S900 Indoor Air Quality Meter can be found under the related accessories tab.
Features:
- Active sampling via internal sensor head fan
- PC data logging and real-time network capability
- Multiple analogue and digital outputs

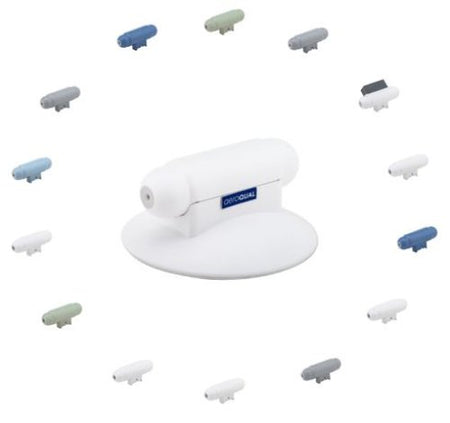

- Interchangeable sensor heads for all gases
- IP41 & NEMA 2 equivalent rating for the enclosure
- Network capability to monitor at several sites simultaneously
- Easy to configure alarm and control outputs via PC software
- Active sampling for higher accuracy
- Lightweight and simple to mount
- Measurement units: Gas: ppm or mg/m3 | Humidity: % | Temperature C or oF
- Reading functions: Instant, minimum, maximum, average
- Sensor head type: Type 1 (interchangeable)
- Analog output: 4-20mA (opto-isolated), 10-30V
- External signal type: Transistor outputs (4)
- External signal functions: Low Alarm | High Alarm | Control | Diagnostics
- Inputs: Standby toggle
- Communication: RS485 (Aeroqual proprietary protocol)
- Jumpers: J1, J2, J3 termination resistors
- Connectors: Screw type
- Monitor Identification (ID): 1 (Default) User configurable from 1 to 255
- Alarm set points: User Configurable - Low Alarm | High Alarm
- Control set point: User Configurable - Low Alarm | High Alarm
- Configuration software: PC Configuration Software
- PC data logging (Windows 7, 8, XP): Link data to a specific location and monitor with free software (Data cable required)
- Environmental operating conditions: -5 C and +45 C; (23 F and 113 F); Relative humidity range: Determined by sensor specification
- As a relay controller with user configured set points to control an external device such as an ozone generator or initiate an alarm.
- As a gas transmitter via the 4-20 mA output which allows connection to a PLC or current sensing device to provide gas concentration information for applications such as health and safety monitoring.
- As a monitoring network via the RS485 digital output to enable gas monitoring at several indoor locations with information being logged to a central point.
The S900 Indoor Air Quality Meter is lightweight, discrete and easily wall mountable. It requires a 12V power supply which is user configured to allow flexibility in the locations it can be installed. The sensor heads are simple to replace and can be sent back to Aeroqual for recalibration. The sensor heads available with the S900 Indoor Air Quality Meter can be found under the related accessories tab.
Features:
- Active sampling via internal sensor head fan
- PC data logging and real-time network capability
- Multiple analogue and digital outputs
- Interchangeable sensor heads for all gases
- IP41 & NEMA 2 equivalent rating for the enclosure
- Network capability to monitor at several sites simultaneously
- Easy to configure alarm and control outputs via PC software
- Active sampling for higher accuracy
- Lightweight and simple to mount
Specifications
- Measurement units: Gas: ppm or mg/m3 | Humidity: % | Temperature C or oF
- Reading functions: Instant, minimum, maximum, average
- Sensor head type: Type 1 (interchangeable)
- Analog output: 4-20mA (opto-isolated), 10-30V
- External signal type: Transistor outputs (4)
- External signal functions: Low Alarm | High Alarm | Control | Diagnostics
- Inputs: Standby toggle
- Communication: RS485 (Aeroqual proprietary protocol)
- Jumpers: J1, J2, J3 termination resistors
- Connectors: Screw type
- Monitor Identification (ID): 1 (Default) User configurable from 1 to 255
- Alarm set points: User Configurable - Low Alarm | High Alarm
- Control set point: User Configurable - Low Alarm | High Alarm
- Configuration software: PC Configuration Software
- PC data logging (Windows 7, 8, XP): Link data to a specific location and monitor with free software (Data cable required)
- Environmental operating conditions: -5 C and +45 C; (23 F and 113 F); Relative humidity range: Determined by sensor specification
Other Resources:
- Calibration FAQs for the AQM, Dust Monitors and Portable Monitors
