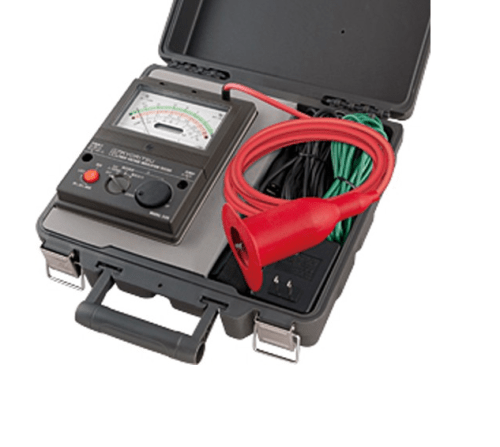

Kyoritsu 3124A Analogue 1 - 10kV Variable Insulation Tester

ORDER ME IN
Product code: 3124A

Backorder Now, once ordered your item will dispatch before the 15th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

The Kyoritsu 3124A is an analogue, high voltage variable insulation tester, capable of testing insulation resistance between 1kV and 10kV. Simple to operate, the 3124A insulation meter is autoranging and operated by rechargeable batteries.

Read more

$4,669.80 AUD + GST
 $5,136.78 AUD Inc. GST
The Kyoritsu 3124A is an analogue, high voltage variable insulation tester, capable of testing insulation resistance between 1kV and 10kV. Simple to operate, the 3124A insulation meter is autoranging and operated by rechargeable batteries
The Kyoritsu 3124A permits a wide range of insulation testing up to 100G at variable test voltages from 1kV to 10kV. Incorporating an auto-discharge function, the 3124A megohmmeter automatically discharges the circuit under test.
The 3124A model also has the capabilities to connect to a data logger/recorder via a DC voltage output. The DC voltage output is shown on the digital display. Supplied with a logger/recorder lead, battery charging lead, 8 x Ni-Cd rechargeable batteries, earth and guard leads, and a hard carry case.
Features:
- Measures insulation resistance at variable test voltages from 1kV to 10kV.
- Simple operation.
- Automatic range detection.
- DC voltage output data loggers and recorders (output shown on digital display).
- Operated by rechargeable NIckel-Cadmium batteries.
- Easy to read scale.
- Auto discharge function.
- Supplied with hard carry case.

Specifications

- Test voltage (variable): 1k-10kV; 1 1000V
- Measuring ranges (Automatic change): 1.6 gigaohms/100 gigaohms (Auto ranging) 100 milliohms
- Measurement accuracy: 0.05 to 50 gigaohms; 1 to 100 milliohms, +/- 10% rdg
- Other ranges accuracy: +/- 1% of scale length*2; +/- 1% of scale length
- Open circuit voltage: +/-2%; +/- 10%
- Output voltage and set: voltage indicate DC 0-10kV +/- 2%rdg +/- 2dgt
- Power source: Ni-MH (1.2V) x8 / External supply DC 15V
- Dimensions: 200(L) x 140(W) x 80(D) mm
- Weight 1.5kg approx.
Included Accessories:
- 7082 (Lead for recorder)
- 7083 (Lead for battery charging)
- 7084 (Earth and guard leads)
- 8266 (120V) or 8267 (230V) (AC Adaptor)
- 9176 (Carrying case [Hard])
- Ni-MH rechargeable battery x 8
- Instruction manual
