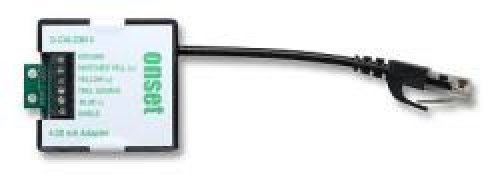

12-bit 4-20mA Input Adapter (Smart Sensor Connection) for Hobo Data Loggers and Stations
Backorder Now, once ordered your item will dispatch before the 17th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).
$247.50 AUD Inc. GST
The 12-bit 4-20 mA Input Adapter interfaces with any sensor providing a 4-20 mA signal to connect to smart sensor compatible data loggers. This adapter features both a non-switched input and a battery-saving switched input that extends the life of external batteries. It also provides a trigger signal for controlling power to attached external sensors, while offering digital filtering which improves measurement accuracy with 32 readings/sample and 60 Hz noise rejection.
Features:
- 12-bit resolution
- Digital filtering improves measurement accuracy with 32 readings/sample4-20 mA adapter has 60 Hz noise rejection
- Measurement averaging over logging interval further enhances accuracy
- Plug-in modular connector for easy interface with HOBO Weather Station or HOBO Micro Station data loggers
- Screw terminal for connecting to sensors
- Micro Station has room for two adapters and Weather Station has room for ten (adapters mount inside station enclosure)
- Represents one data input channel
- Measurement range: 4-20 mA (measures down to 0 mA to detect error condition)
- Operating Temperature Range: -40 to 75 C (-40 to 167 F)
- Accuracy: +/- 40 uA +/- 0.3% of reading (over operating temperature range)
- Resolution: +/- 4.93 uA
- Input impedance: 124 ohms (differential input)
- Sensor Trigger Source: Voltage: 2.5 V +/- 2.4%; maximum current: 1 mA
- Trigger Timing:
- Warm-up Time: 300 ms +/- 3% (fixed)
- Measurement Time: 16.6 ms +/- 3% to filter out 60 Hz noise
- Cable Length: 14 cm (5.5 inch)
