15 Series CAT III 600V AC Current Clamp-On Current Sensors
Backorder Now, once ordered your item will dispatch before the 28th of April 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).
$652.30 AUD Inc. GST

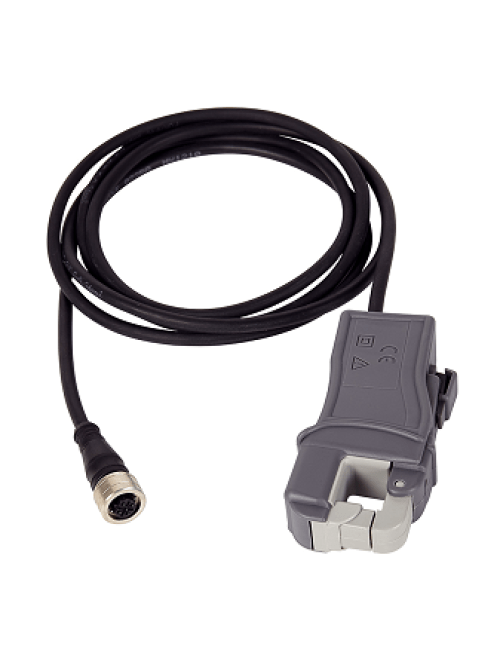

The 15 Series CAT III 600V AC Current Clamp-On Probes are a high performance current sensor incorporating a split iron core window current transformer with low ratio and phase errors. Specifically designed as an accessory for CHK Power Quality instruments and in CAT III environments.
Choose between 1AC10, 1AC100S and 1ACR100S models depending on the model number of your MIRO power logger.
Specifications
:|
Rated input current |
1AC10: 10A, Output signal: 440 mV 1AC100S: 100A, Output signal: 440 mV 1ACR100S: 100A, Output signal: 200 mA |
|
Maximum input current |
120% of rated current |
|
Accuracy |
+- 1% at rated current |
|
Phase error (10A type) |
< 2 degrees at rated current |
|
Phase error (100A type) |
3 degrees at rated current
|
|
Temperature coefficient |
0.015% / C |
|
Frequency range |
40Hz - 10kHz |
|
Working voltage
|
600V AC RMS or DC |
|
Conductor size
|
15mm diameter, busbar (15 x 17) mm
|
|
Dimensions (H x W x L)
|
(23.8 x 42.5 x 102) mm |
|
Lead length |
2m |
|
Weight |
215 grams (118 grams excluding lead) |
|
Colour |
Grey / light grey |
|
Safety class |
CAT III 600V, pollution degree 2 as per IEC 61010-1-2010 |
|
Storage temperature |
-20 C to 70 C |
|
Operating temperature
|
-10 C to 55 C
|
|
Operating humidity
|
15% - 85% (non- condensing) |
