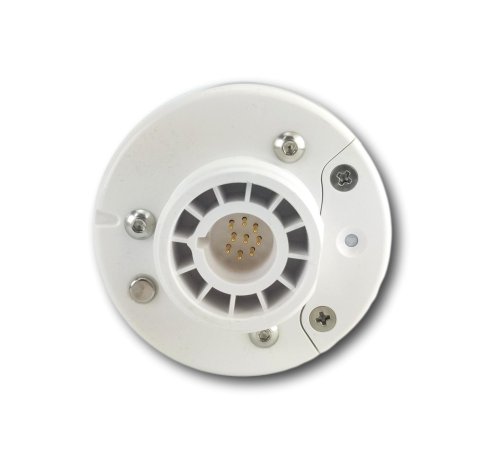

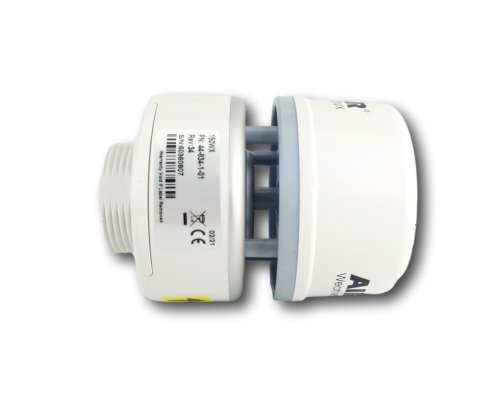

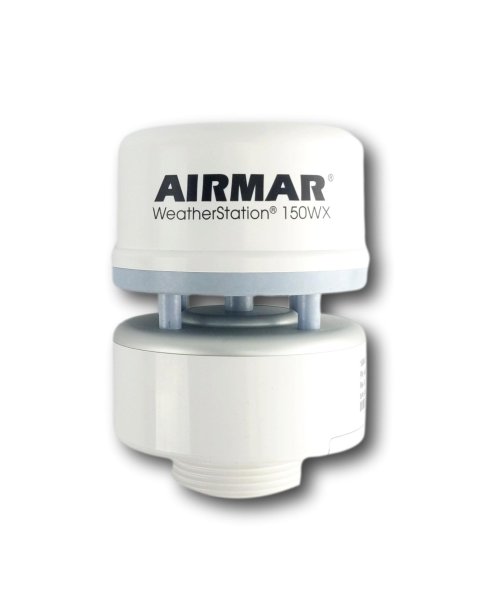

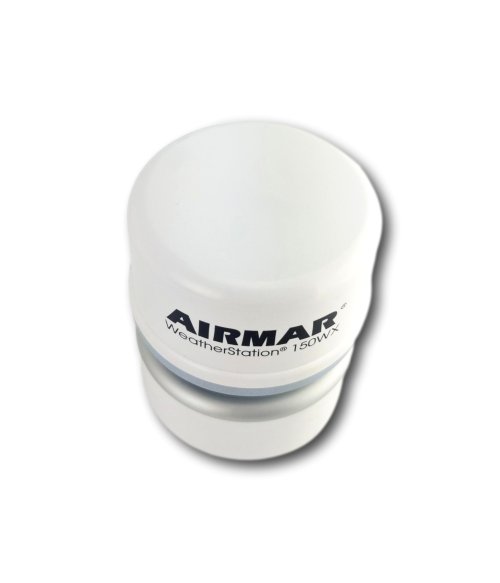

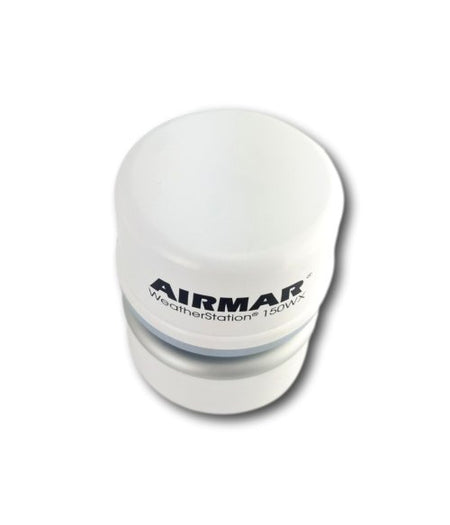

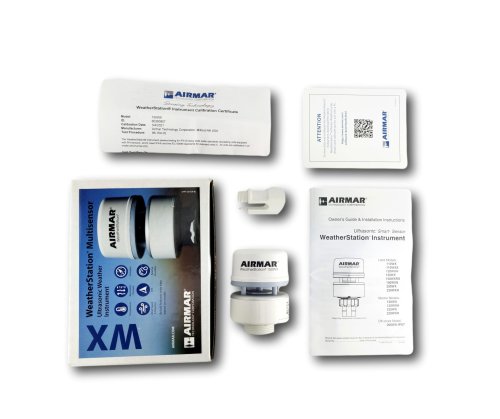

150WX WeatherStation - IC-150WX
Backorder Now, once ordered your item will dispatch before the 17th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).
$2,046.00 AUD Inc. GST
Whether you are harvesting crops, operating equipment, preparing for bad weather or responding to a hazardous event, understanding the weather is important. The WX Series allows users to make informed decisions based on site specific information, resulting in improved efficiency, reduced risks and overall cost savings.
Features:
- Measures apparent wind speed and angle, barometric pressure, air temperature, relative humidity, calculated dew point, heat index and wind chill temperature.
- Also measures theoretical wind speed and direction, GPS position, speed over ground and course over ground
- Built-in compass, GPS and accelerometer
- Also measures theoretical wind speed and direction, GPS position, speed over ground and course over ground
- Includes NMEA 0183 (RS422) and NMEA2000 (CAN Bus) outputs
Specifications
Wind speed:
- Range: 0-40 m/s
- Accuracy: 5% at 10 m/s (at 4 angles)
- Resolution: 0.1 m/s
- Units: m/s
- Calculations: User configurable damping
Wind direction:
- Range: 0 to 359.9 degrees
- Accuracy: +/- 3 degrees at 10 m/s
- Resolution: 0.1
- Calculation: User configurable damping
Air temperature:
- Range: -40 to 80 C
- Accuracy: +/- 1.1 C at 20 C
- Resolution: 0.1
- Units: C
Barometric pressure:
- Range: 300 to 1100 hPa
- Accuracy: +/- 0.5 hPa at 25 C (or better)
- Resolution: 0.1 hPa
Relative Humidity:
- Range: 0-100%
- RH Accuracy: +/- 5% RH at 0 to 90% RH at 20 C
- Resolution: 0.1% RH
Other specifications
Three Axis Compass:
- Range: 0 to 359.9
- Accuracy: 1
- RMS when level (150WX only), 1 degree static heading accuracy
- Resolution: 0.1
Pitch and Roll:
- Measurement Type: MEMS
- Range: 50 degrees
- Accuracy: +/- 1 in range of +/- 30 degrees
- Resolution: 0.1
- Units: Degrees
- GPS Position Accuracy: 3 m (10') CEP
- Operating Temperature Range: -25 to 55 C
- Supply Voltage: 9 VDC to 40 VD
- Supply Current (at 12 VDC): less than 75 mA (<0.9 W), LEN 2
- Output Rate: User specified, 0.1 seconds
- Mounting Thread Size on Base: Standard 1"-14 UNS
- Certifications and Standards: CE, IPX6 (Relative Humidity/IPX4), RoHS, IEC61000-4-2,IEC60945, IEC60950_1C, IEC60950_22A, EN55022, EN55024, EN15014982
Warranty
- 1 Year Manufacturer Warranty + Additional 1 Year Instrument Choice Warranty
