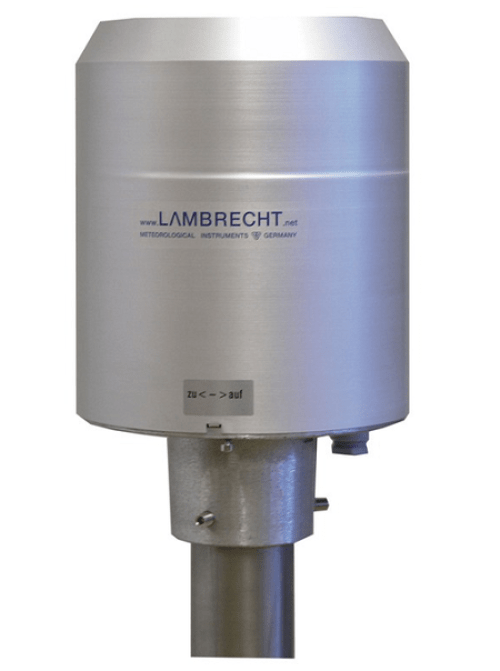

15189H heated Precipitation sensor, 2 cm³ tipping bucket
Backorder Now, once ordered your item will dispatch before the 17th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).
The resistant and beautifully designed sensor has a linearised pulse output for high accuracy and easy connection to external data loggers! Its selectable analogue output signal substantially simplifies the connection to PLC. Winter-fit models and in general a long durability are guaranteed by weatherproof materials.The heated version comes with a controlled, 2-circuit heating, ideal for environments with icing and snow.
Regular price
$1,879.20 AUD
+ GST
$2,067.12 AUD Inc. GST
$2,067.12 AUD Inc. GST
Selectable measuring ranges as well as absolute or gliding sums for the analogue output signals
Single device or part of an automatic weather station
Connectable to data logger TROPOS
Very reliable, weighing measuring system
High-quality material
Easy installation
With controlled, dual-circuit heating, making it ideal for cold environments and snowy conditions.
Specifications
Measuring range: 2 cm: (2 g) volume of tipping bucket - 0.1 mm
Accuracy: 2 %
Resolution: 0-8 mm/min
Analogue output: 0-20 mA = basic setting/4-20 mA/0-5/10 V - selectable current consump. 40 mA supply voltage 18...30 VDC max. load 600
Pulse output: For linearity, bounce-free output signal at deactivated analogue output: current consump. max. 100 A typical 50 A supply voltage 5...30 VDC switch load max. 30 VDC/ max. 0.5 A - at pure ohm load
Collecting surface area: 200 cm/ WMO standard
Heating details: dual-circuit heating controlled temperature of 4 2 C within a range of -20...+4 C heating power 150 W supply voltage 24 VDC
