19 mm (0.75") 3.5 Digit, , 4-20mA loop powered LCD Voltmeter with Programmable Red/Green Back-lighting - IC-DPM 942-FPSI
Backorder Now, once ordered your item will dispatch before the 10th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).
The DPM 942-FPSI is a 3.5 digit LCD current loop meter that can also be used for dual colour go-stop status indication. This functionality is ideal for simplifying monitoring applications, where an operator needs to know the status of the equipment at a glance.
Regular price
$171.00 AUD
+ GST
$188.10 AUD Inc. GST
$188.10 AUD Inc. GST

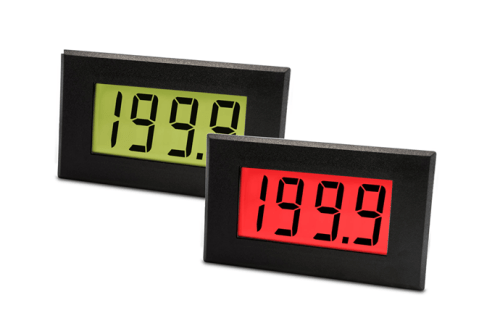

During standard operation the back-light is green, however if the reading goes outside the user programmable thresholds, the display will turn red. The user can then read off the actual value from the display and take corrective action. 3 open collector outputs are included, that indicate high, ok and low conditions.
Both the back-light color and outputs can be inverted independently. Module setup is a simple operation, using a six-way DIP switch and two push buttons. No special tools or equipment are required.
Features:
19mm (0.75) digit height
Dual colour backlight with programmable status indication
Open collector outputs that mirror the backlight status (with inverted output option)
5V supply voltage
4-20mA measurement range
Specifications
Accuracy (overall error): 0.05 to 0.1 % (1 count)
Linearity: 1count
Sample rate: 3 samples/sec
Operating temperature range: 0 to 50 C
Temperature stability: 100 ppm/C
Supply voltage: 4.5 to 5.5 V d.c.
Supply current (excluding backlight): 500 mA
Back-light supply current: 35 mA
Input leakage current (Vin = 0V): 10 pA
