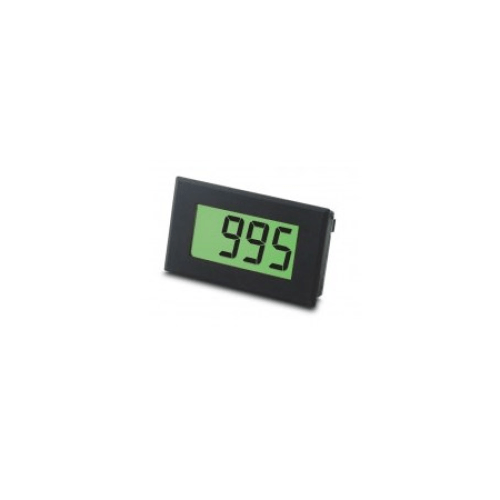

19mm (0.75"), LCD Thermocouple Indicator - IC-DTM 995B
Backorder Now, once ordered your item will dispatch before the 16th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).
The DTM 995B is compatible with K, J and T type thermocouples. It can measure between -200 and +1300 C (-328 to +1999 F) when using an appropriate thermocouple.
Regular price
$141.00 AUD
+ GST
$155.10 AUD Inc. GST
$155.10 AUD Inc. GST
The DTM 995B is compatible with K, J and T type thermocouples. It can measure between -200 and +1300C (-328 to +1999F) when using an appropriate thermocouple.
The current value and the maximum and minimum values since power-on are recorded, which can be recalled and displayed by using an
external push button connected to the meter. Calibration can be performed easily using two potentiometers located on the rear of the meter.
Cold-junction compensation is used to maintain accuracy when the meter is exposed to changes in temperature.
The meter is housed in a robust carrier, which can be bolted in place or panel mounted using the low profile bezel, window and clips provided. Backlighting is included for use in poor lighting conditions.
Features:
Measures temperature from a K, J or T-type thermocouple
-200 to +1300C (-328 to +1999F) measurement range
Displays current, highest and lowest readings
19 mm (0.75) digit height
Screw terminal connections
Accuracy (excluding probe): 1 (2)C (F)
Thermocouple measurement range (K-type): -200(-328) to +1300(+1999)C (F)
Thermocouple measurement range (J-type): -130 (-202) to +900 (+1652)C (F)
Thermocouple measurement range (T-type): -200 (-328) to +350 (+662) C (F)
Supply voltage (normal operation): 7.5 to 30V d.c.
Supply voltage (5V mode): 4.75 to 5.25 V d.c.
Back-light voltage: 4.75 to 5.25 V d.c.
Supply current: 6 (at 30V) to 13 (at 5V) mA
Supply current with back-lighting: 20 (at 30V) to 50 (at 5V)mA
Operating temperature range: 0 (32) to 50 (122)C (F)
Temperature stability: 0.05 (0.1)C (F)
The current value and the maximum and minimum values since power-on are recorded, which can be recalled and displayed by using an
external push button connected to the meter. Calibration can be performed easily using two potentiometers located on the rear of the meter.
Cold-junction compensation is used to maintain accuracy when the meter is exposed to changes in temperature.
The meter is housed in a robust carrier, which can be bolted in place or panel mounted using the low profile bezel, window and clips provided. Backlighting is included for use in poor lighting conditions.
Features:
Measures temperature from a K, J or T-type thermocouple
-200 to +1300C (-328 to +1999F) measurement range
Displays current, highest and lowest readings
19 mm (0.75) digit height
Screw terminal connections
Specifications
Accuracy (excluding probe): 1 (2)C (F)
Thermocouple measurement range (K-type): -200(-328) to +1300(+1999)C (F)
Thermocouple measurement range (J-type): -130 (-202) to +900 (+1652)C (F)
Thermocouple measurement range (T-type): -200 (-328) to +350 (+662) C (F)
Supply voltage (normal operation): 7.5 to 30V d.c.
Supply voltage (5V mode): 4.75 to 5.25 V d.c.
Back-light voltage: 4.75 to 5.25 V d.c.
Supply current: 6 (at 30V) to 13 (at 5V) mA
Supply current with back-lighting: 20 (at 30V) to 50 (at 5V)mA
Operating temperature range: 0 (32) to 50 (122)C (F)
Temperature stability: 0.05 (0.1)C (F)
