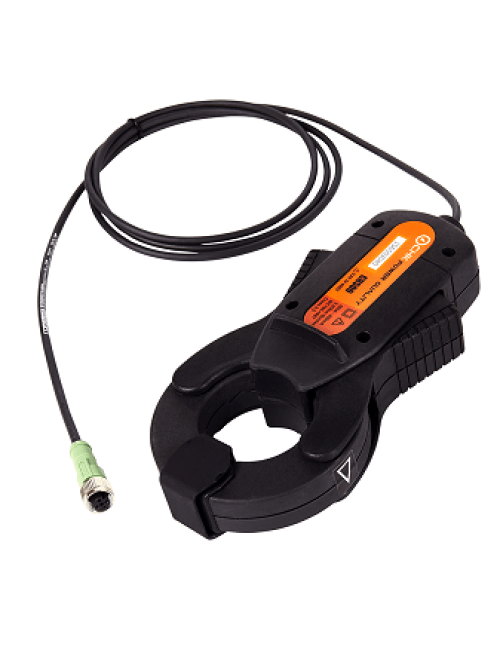

1ACR100 CAT IV 600V AC Current Clamp-On Current Sensor

ORDER ME IN
Product code: 1ACR100

Backorder Now, once ordered your item will dispatch before the 12th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

The 52 Series CAT IV 600V AC Current Clamp-On Probes are a high performance current sensor incorporating a split iron core window current transformer with low ratio and phase errors. Specifically designed as an accessory for CHK Power Quality instruments Miro PQ35 for use in energised circuits and in CAT IV environments.

Read more

$593.00 AUD + GST
 $652.30 AUD Inc. GST
The 52 Series CAT IV 600V AC Current Clamp-On Probes are a high performance current sensor incorporating a split iron core window current transformer with low ratio and phase errors. Specifically designed as an accessory for CHK Power Quality instruments Miro PQ35 for use in energised circuits and in CAT IV environments.

Specifications

- Rated input current: 100A
- Maximum input current: 120% of rated current
- Output signal: 200mA at rated current
- Burden: 2.2. Ohms (1ASC series)
- Accuracy Class: 100A, 1.0 IEC 185; 1987Other, 0.5 IEC 185 1987
- Frequency range: 40Hz to 5kHz
- Working voltage: 600V AC RMS or DC
- Dielectric strength: 10750 Vrms
- Conductor size: 15mm diameter, busbar (15 x 17) mm
- Dimensions (H x W x L): 60 x 100 x 200 mm
- Jaw aperture: 52 mm
- Lead length / Weight: 2m / 800 grams
- Enclosure: V0 nylon
- Encapsulation / Colour: Fully insulated / Black
- Safety class: CAT IV 600V as per IEC 61010-1-2003
- Operating temperature: -20 C to 60 C
- Storage temperature: -20 C to 60 C
