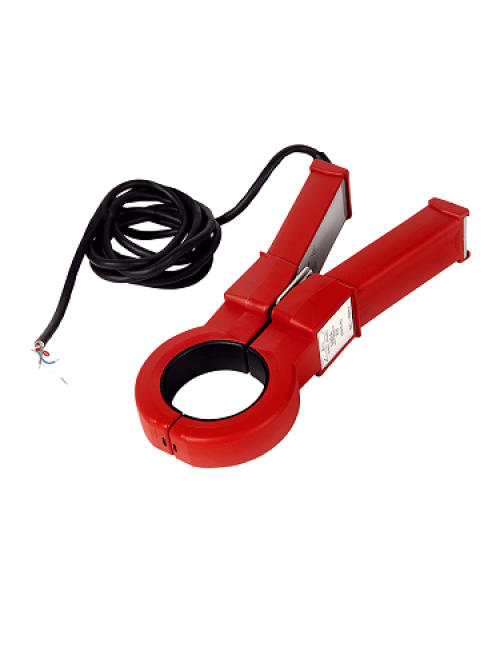

1ADC500 52 Series CAT III 600V AC/DC Current Clamp-On Probes

ORDER ME IN
Product code: 1ADC500

Backorder Now, once ordered your item will dispatch before the 12th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

The 52 Series CAT III 600V AC/DC Current Clamp-On Probes are high performance current converters incorporating a Hall Effect sensor within a split core window current transformer with low ratio and phase errors. Specifically designed as an accessory for CHK Power Quality instruments Miro PQ45, used in CAT III 600V environments.

Regular price $593.00 AUD + GST
$652.30 AUD Inc. GST
The 52 Series CAT III 600V AC/DC Current Clamp-On Probes are high performance current converters incorporating a Hall Effect sensor within a split core window current transformer with low ratio and phase errors. Specifically designed as an accessory for CHK Power Quality instruments Miro PQ45, used in CAT III 600V environments.

Specifications

- Rated input current: 500A AC/DC
- Maximum input current: 120% of rated current
- Output signal: 2V at rated current
- Zero adjustment: Yes
- Sensor technology: Hall effect
- Burden: 10k Ohm
- Accuracy: 2% (10-120)% of rated
- Phase error: 4 degrees at 1kHz
- Frequency range: 10kHz (-3dB)
- Working voltage: 600V
- Dielectric strength: 4kV at 50Hz for 1 minute
- Dimensions (H x W x L): 24 x 107 x 213 mm
- Jaw aperture: 52 mm
- Lead length / Weight: 2m / 600 grams
- Power indicator: Red LED
- Enclosure colour: Red
- Operating temperature: -10 C to 50 C
- Protection class: CAT III 600V, pollution degree II, IEC 61010-2
- Environment: Indoors
