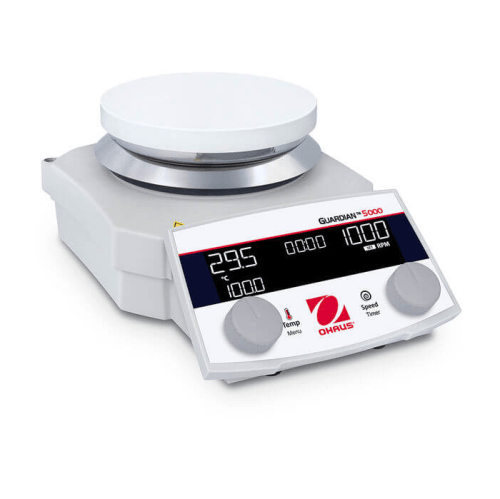

20 L G52HSRDA Guardian Hotplate and Stirrer
Backorder Now, once ordered your item will dispatch before the 15th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).
The Next Generation Guardian 5000TM Hotplate Stirrers are engineered for safety and versatility across research, academic and industrial settings. They offer powerful heating and mixing, with premium hardware and software to support diverse users safely and reliably.
- 20 L capacity with a circular ceramic coated aluminum plate.
- Has three heating modes for either quick or precise heating, depending on the application.
- With RS232 interface.
Regular price
$1,417.00 AUD
+ GST
$1,558.70 AUD Inc. GST
$1,558.70 AUD Inc. GST
Note: Does not include PT100/PT1000 sensors
The Next Generation Guardian 5000TM Hotplate Stirrers are engineered for safety and versatility across research, academic and industrial settings. They offer powerful heating and mixing, with premium hardware and software to support diverse users safely and reliably. Heating models reach up to 550C and feature 3 temperature control modes for quick heating or precise heating without overshoot.
Features:
- Display: Backlit LCD display with white characters, integrated heating/stirring status indicators in green and a prominent hot top indicator in yellow
- Operation: 220-240VAC 50/60Hz power entry, rotary switch knob(s) control
- Communication: RS232 for data logging and remote control
- Construction: Robust full metal housing, ceramic-coated aluminum round top plate, high performance SmCo magnet
- Design Features: Large dip angle front panel for easy monitoring from a distance, smooth enclosure surfaces for easy cleaning, audible alarm, and IP32 protection (A rapid install splashing shield is optional, please ask about it when ordering to include it in the quote).
Specifications
- Function: Heating and Stirring
- Capacity: 20 L
- Plate Construction: Round ceramic coated aluminum
- Temp. Range (Ambient): 5 to 550 C
- Speed Range: 50 rpm to 1,800 rpm
- Calibration: Temperature Calibration 3 Plate/3 Probe
- Control: Digital
- Dimensions: 329 mm x 116 mm x 221 mm (LxHxW)
- Display: High contrast brilliant LCD display
- Net Weight: 4.6 kg
- Power: 220V-240V at 7A 50/60Hz
- Safety Certification: CE; TUV
- Speed Stability: +/-2%
- Temperature Probe: Pt100; Pt1000; Available as an Accessory
- Temp. Stability: +/-1% Plate, below 100 C +/-1 C and +/-0.5% Probe, below 100 C +/-0.5 C
- Timer: 1 minute 99 hours, 59 minutes
- Working Environment: 5 40 C, 80% RH, Non-condensing
