200mVdc full scale, Bezel Mounted - IC-DPM 40

ORDER ME IN
Product code: IC-DPM-40

Backorder Now, once ordered your item will dispatch before the 11th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

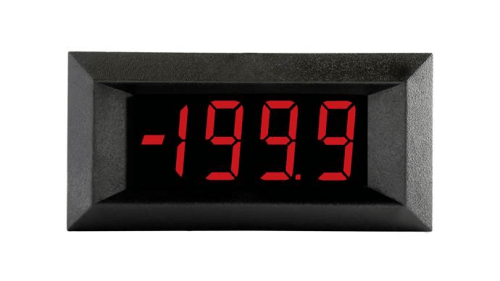

The DPM 40 is a 3 and a half digit LED voltmeter with 11mm (0.43") digit height. It features 200mV d.c. full scale reading, auto-zero and auto-polarity. The meter can be panel mounted using the bezel and window. Connection to the meter is via two rows of pins.

Read more

$124.00 AUD + GST
 $136.40 AUD Inc. GST

The DPM 40 is a 3 digit LED voltmeter with 11mm (0.43") digit height. It features 200mV d.c. full scale reading, auto-zero and auto-polarity. The meter can be panel mounted using the bezel and window. Connection to the meter is via two rows of pins. This is a popular part, normally stocked in high quantity and suitable for new designs.

Features:

3 Digit LED Voltmeter
200mV Full Scale Reading
Auto-zero, Auto-polarity
DIL Pin Connections
Bezel Mounted Module

Specifications



Accuracy (overall error): 0.1 % (1 count)
Linearity: 1count
Sample rate: 2.5 samples/sec
Operating temperature range: 0 to 50 C
Temperature stability: 150 ppm/C
Supply voltage (V+ to V-): 4.5 to 5.5 V d.c.
Supply current: 50 to 90 uA
Input leakage current: 1-10 pA
