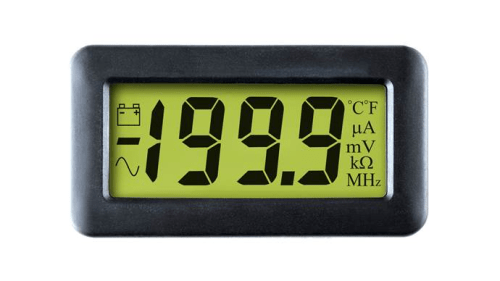

200mVdc full scale, LED backlit, Annunciators, Bandgap reference, Bezel mounted - IC-DPM 750S-BL
Backorder Now, once ordered your item will dispatch before the 11th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).
The DPM 750S-BL features a 200mV d.c. measurement range with auto-zero and auto-polarity. Decimal points are user selectable. The meter features a negative rail generator which enables the meter to measure a signal referenced to its own power supply GND.
Regular price
$84.00 AUD
+ GST
$92.40 AUD Inc. GST
$92.40 AUD Inc. GST
Features:
3 Digit Backlit LCD Meter
200mV Full Scale Reading
3to7.5 V or 6to15V Operation
Low Battery Warning
Bandgap Reference Specifications Accuracy (overall error): 0.05 to 0.1 % (1 count)
Linearity: 1count
Sample rate: 2.5 samples/sec
Temperature stability: 50 ppm/C
Supply voltage (V+ to GND): 3to 7.5 V d.c.
Supply voltage (V+ to V-): 6 to 15 V d.c.
Supply Current (V+ to GND): 500 uA
Supply Current (V+ to V-): 350 uA
Back-light supply voltage: 4.75 to 5.0V d.c.
Back-light supply current @ 5V d.c.: 30 to 50 uA
Input leakage current (Vin = 0V): 1 to 10 pA
