200mVdc full scale, LED backlit, Snap-in - IC-DPM 1AS-BL
Backorder Now, once ordered your item will dispatch before the 11th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

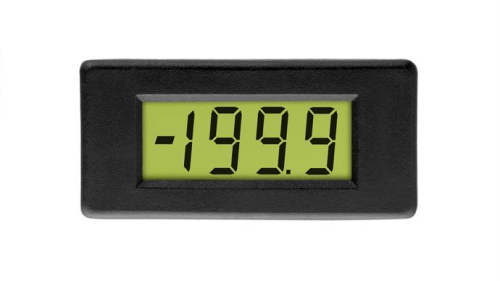

The DPM 1AS-BL is an ultra-miniature 3 and a half, digit LCD voltmeter with 5.5mm (0.22") digit height and LED backlighting. It features a negative rail generator which enables the meter to measure a signal referenced to its own power supply GND.
Regular price
$72.00 AUD
+ GST
$79.20 AUD Inc. GST
$79.20 AUD Inc. GST
Features:
5.5mm (0.22") Digit Height
3 to7.5V or 6 to15V Operation
200mV Full Scale Reading
LED Back-lighting
Auto-zero & Auto-polarity
Specifications
Accuracy (overall error): 0.005 to 0.01 % (1 count)
Linearity: 1count
Sample rate: 1.6 samples/sec
Operating temperature range: 0 to 50 C
Temperature stability: 30 ppm/C
Supply voltage (V+ to V-): 6 to 9 V d.c.
Supply voltage (V+ to GND configuration): 3 to 7.5 V d.c.
Supply current (V+ to V-): 175 uA
Supply current (V+ to GND configuration): 350 uA
Input leakage current (Vin = 0V): 1-10 pA
