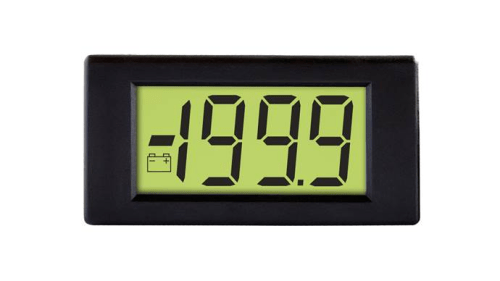

200mVdc full scale, LED backlit, Snap-in, Panel Meter - IC-DPM 3AS-BL
Backorder Now, once ordered your item will dispatch before the 11th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).
The DPM 3AS-BL is an ultra-miniature, 3 and a half, digit LCD voltmeter with 11mm (0.43") digit height and LED backlighting. It features a negative rail generator which enables the meter to measure a signal referenced to its own power supply GND. The meter plugs directly into a SIL socket or can be snapped into a panel.
Regular price
$87.00 AUD
+ GST
$95.70 AUD Inc. GST
$95.70 AUD Inc. GST
Features:
11mm (0.43") Digit Height
3 to7.5V or 6 to15V Operation
200mV Full Scale Reading
LED Back-lighting
Auto-zero & Auto-polarity
Specifications
Accuracy (overall error): 0.1 % (1 count)
Linearity: 1count
Sample rate: 2.5 samples/sec
Operating temperature range: 0 to 50 C
Temperature stability: 250 ppm/C
Supply voltage (V+ to GND configuration): 3 to 7.5 V d.c.
Supply voltage (V+ to V-): 6 to 15 V d.c.
Supply current (V+ to GND configuration):350 uA
Supply current (V+ to V-): 175 uA
Input leakage current: 1-10 pA
Backlight supply voltage: 4.75 to 5.0V d.c.
Backlight supply current @ 5V d.c.: 40 to 60 mA
