200mVdc full scale, Round hole mounted, Wire connections - IC-EMV-1125

ORDER ME IN
Product code: IC-EMV-1125

Backorder Now, once ordered your item will dispatch before the 11th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

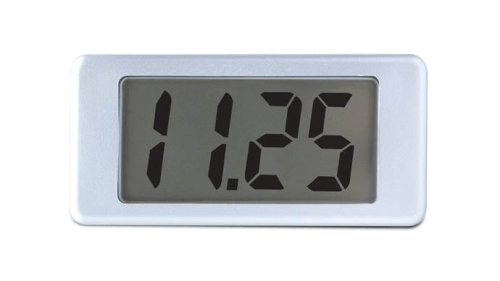

The EMV 1125 is a 3.5 digit LCD voltmeter with 12.5mm (0.5") digit height. It features 200mV d.c. full scale reading, auto-zero and auto-polarity. The meter can be panel mounted by drilling a 5.5mm (0.22") hole.

Read more

$84.00 AUD + GST
 $92.40 AUD Inc. GST

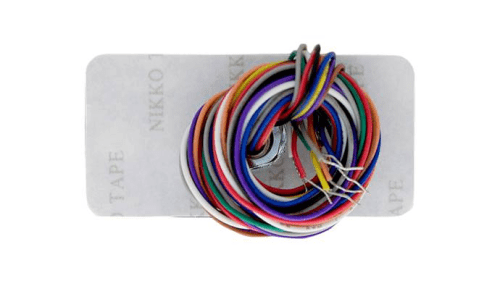

The EMV 1125 is a 3 digit LCD voltmeter with 12.5mm (0.5") digit height. It features 200mV d.c. full scale reading, auto-zero and auto-polarity. The meter can be panel mounted by drilling a 5.5mm (0.22") hole. Connection to the meter is via a set of wires. Includes T/BLK-4 screw terminal board with on-board scaling.

Features:

3 Digit LCD Meter
200mV Full Scale Reading
Wire Connections
Round Hole Mounting

Specifications



Accuracy (overall error): 0.05 to 0.1 %(2 count)
Linearity: 1 count
Displayed reading: -1999 to 1999
Resolution: 0.1 mV d.c.
Sample rate: 3 samples/sec
Operating temperature range: 0 to 50 C
Temperature stability: 100 ppm/C
Supply Voltage: 7.5 to 15 V d.c.
Supply Current: 150 mA
