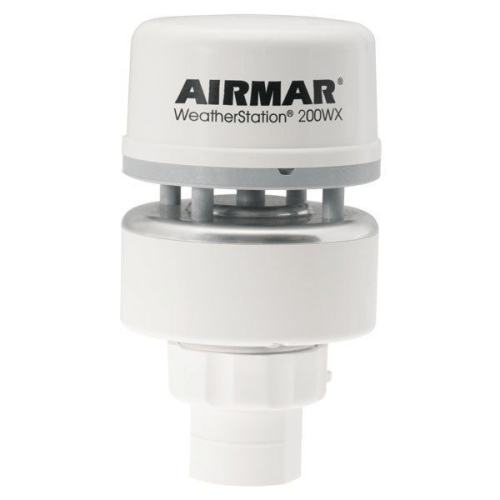

200WX-IPX7 WeatherStation
Backorder Now, once ordered your item will dispatch before the 17th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).
$2,971.10 AUD Inc. GST
Weather impacts every aspect of operations on offshore platforms, ships, and in ports. Rapid changes in weather and sea conditions make monitoring of both meteorological and oceanographic parameters a critical part of ensuring safety, while also maintaining operational efficiency.Reliable environmental monitoring is critical for various offshore needs. The numerous sensors contained in the compact size of the 200WX is an attractive feature for installations where space is limited, such as on buoys, USVs, and ASVs.
Features:
- Measures theoretical wind speed and direction, air temperature and calculated wind chill, and barometric pressure.
- IPX7 waterproof rating
- GPS position, speed over ground, course over ground
- Three-axis solid state compass with dynamic stabilization
- Three-axis rate gyro for rate of turn
- Best-in-class; less than 1 degree pitch and roll accuracy
- With NMEA0183(RS422) & NMEA2000(CANBus)
Specifications
:Wind speed:
- Range: 0-40 m/s
- Accuracy: 5% at 10 m/s (at 4 angles)
- Resolution: 0.1 m/s
- Units: m/s
- Calculations: User configurable damping
Wind direction:
- Range: 0 to 359.9 degrees
- Accuracy: +/- 3 degrees at 10 m/s
- Resolution: 0.1
- Calculation: User configurable damping
Air temperature:
- Range: -40 to 80 C
- Accuracy: +/- 1.1 C at 20 C
- Resolution: 0.1
- Units: C
Barometric pressure:
- Range: 300 to 1100 hPa
- Accuracy: +/- 0.5 hPa at 25 C (or better)
- Resolution: 0.1 hPa
Relative Humidity:
- Range: 0-100%
- RH Accuracy: +/- 5% RH at 0 to 90% RH at 20 C
- Resolution: 0.1% RH
Other specifications
Three Axis Compass:
- Range: 0 to 359.9
- Accuracy: 1
- RMS when level, 1 degree static heading accuracy
- Resolution: 0.1
Pitch and Roll:
- Measurement Type: MEMS
- Range: 50 degrees
- Accuracy: +/- 1 in range of +/- 30 degrees
- Resolution: 0.1
- Units: Degrees
- GPS Position Accuracy: 3 m (10') CEP
- Operating Temperature Range: -25 to 55 C
- Supply Voltage: 9 VDC to 40 VD
- Supply Current (at 12 VDC): less than 75 mA (<0.9 W), LEN 2
- Output Rate: User specified, 0.1 seconds
- Mounting Thread Size on Base: Standard 1"-14 UNS
- Certifications and Standards: CE, IPX7 RoHS, IEC61000-4-2, IEC60945,IEC60950_1C, IEC60950_22A, EN55022, EN55024, EN15014982
Warranty
- 1 Year Manufacturer Warranty + Additional 1 Year Instrument Choice Warranty
