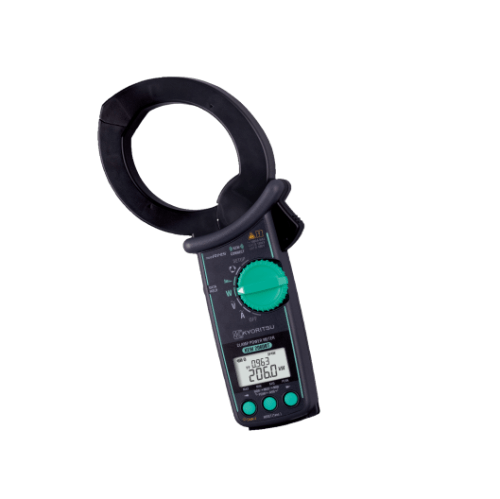

2060BT Kyoritsu Digital Clamp Multimeter
Backorder Now, once ordered your item will dispatch before the 13th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).
Digital clamp multimeter with large jaws; appropriate for busbar and large currents. Conductor size 75mm diameter and busbar of 80 x 30mm or less.
Regular price
$2,339.60 AUD
+ GST
$2,573.56 AUD Inc. GST
$2,573.56 AUD Inc. GST
Measurement Functions:
- Measurements of current, voltage, power, harmonics and phase detection are possible.
- True RMS: Indicates a correct value at the distorted waveform.
- Functions of PEAK, MAX, MIN, AVG are available. Easy to check the temporal change in the power source.
- LCD can display simultaneously the values of voltage and frequency or power and power factor.
Power measurement:
The 2060BT can perform Single-phase 2-Wire / Single-phase 3-Wire and balance and unbalance measurements of Three-phase 3-Wire / Three-phase 4 Wire. The double display can simultaneously show many parameters like W & PF, W & deg, W & VA, W & Var, V & A, etc.
Harmonic measurement:
Harmonics of the voltage and current, which cause various failures at the field, can be measured.
It is possible to measure and show each voltage and current harmonics up to 30th. Total harmonics distortion factor is in two types of THD-R and THD-F. Each degree of harmonics can be shown on the LCD of the tester. Both the current value (or voltage value) and the content ratio can be displayed on the same screen.
Phase detection:
Positive phase, negative phase and missing phase can be confirmed by the buzzer sound and the display without changing the connection of the leads.
Connectivity:
- Dedicated Application "KEW Power" supports both Android and iOS.
- LCD display can be checked at the smart devices.
- LCD display can be checked at the smart devices.
- Measured values and graphs can be stored with a press of a button.
- Voltage and current can be shown in the waveform display. Existence of the harmonics can be found easy.
- Voltage and current can be shown in the waveform display. Existence of the harmonics can be found easy.
- Threshold of each measured value can be set at the application, and PASS and FAIL judgement is possible.
Specifications
ACV:
- Range: 1000V
- Accuracy: +/- 0.7%rdg +/- 3dgt (40.0 - 70.0Hz), +/- 0.3%rdg +/- 5dgt (70.1 - 1KHz)
- Crest factor: 1.7 or less
ACA:
- Range: 40.00/400.0/1000A (3 range auto)
- Accuracy: +/- 1.0rdg +/- 3dgt (40.0 - 70.0Hz) +/- 2.0rdg +/- 5dgt (70.1 - 1kHz)
- Crest factor: 3 or less on 40.00A/400.0A range, 3 or less 1500A peak on 1000A range
Frequency:
- Display Range: 40.0 - 999.9Hz
- Accuracy: +/- 0.3rdg +/- 3dgt
Active power:
- Range: 40.00/400.0/1000kW
- Accuracy: +/- 1.7%rdg +/- 5dgt (PF1, sine wave, 45 - 65Hz)
Apparent power:
- Range: 40.00/400.0/1000kVA
- Accuracy: +/- 1dgt against each calculated value
- Sum: add errors of each channel, 3P3W: +/- 2dgt, 3P4W: +/- 3dgt
Reactive power:
- Range: 40.00/400.0/1000kVar
- Accuracy: +/- 1dgt against each calculated value
- Sum: add errors of each channel, 3P3W: +/- 2dgt, 3P4W: +/- 3dgt
Power factor:
- Display Range: -1.000 - 0.000 - +1.000
- Accuracy: +/- 1dgt against each calculated value
- Sum: add errors of each channel, 3P3W: +/- 2dgt, 3P4W: +/- 3dgt
Phase angle (1P2W only):
- Display Range: -180.0 - 0.0 - +179.9
- Accuracy: +/- 3.0 degrees
Harmonics RMS (Content rate):
- Analysis order: 1st - 30th order
- Accuracy: +/- 5.0rdg +/- 10dgt (1 - 10th), +/- 10rdg +/- 10dgt (11 - 20th), +/- 20rdg +/- 10dgt (21 - 30th)
Total harmonics THD-R/THD-F:
- Display Range: 0.0% - 100.0%
- Accuracy: +/- 1dgt against the calculated results of each measured value
