3.5" PanelPilot Current Loop Indicator with Compatible Smart Graphics Display - IC-SGD 35-M420
Backorder Now, once ordered your item will dispatch before the 10th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

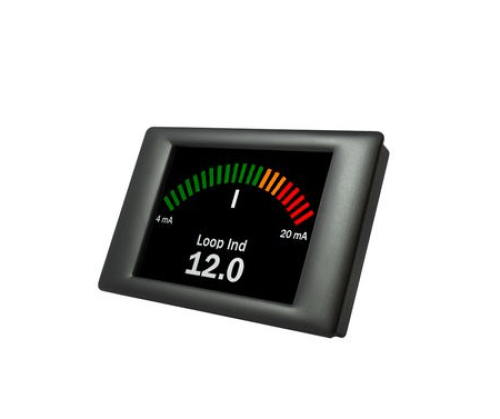

The 3.5" PanelPilot Current Loop Indicator has a 320 x 240 pixel (QVGA) colour display and USB programming interface. Using PanelPilot for Windows software, users are able to choose from an ever increasing number of configurations which can then be customised for their needs.
Regular price
$248.00 AUD
+ GST
$272.80 AUD Inc. GST
$272.80 AUD Inc. GST

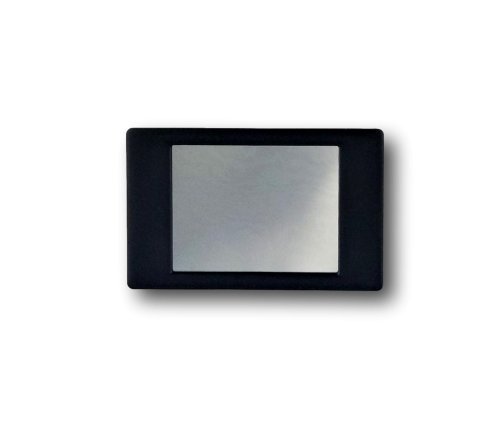

The SGD 35-M is a PanelPilot Compatible graphics display with a 320 x 240 pixel (QVGA) colour display and USB programming interface.
Using the PanelPilot software (compatible with 32-bit and 64-bit versions of Windows 7, 8 and 10), users are able to choose from an ever-increasing number of configurations (six voltmeters at launch) which can then be customized to their needs.
Colours, text labels, splash screen and input scaling can all be customized by the user through the software and then uploaded to the SGD 35-M through the USB connection.

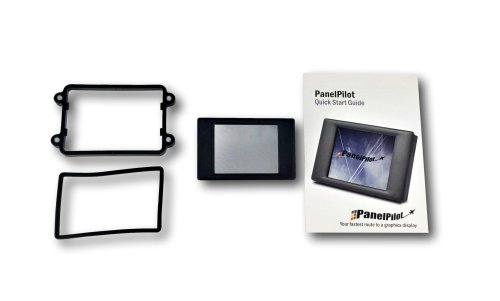

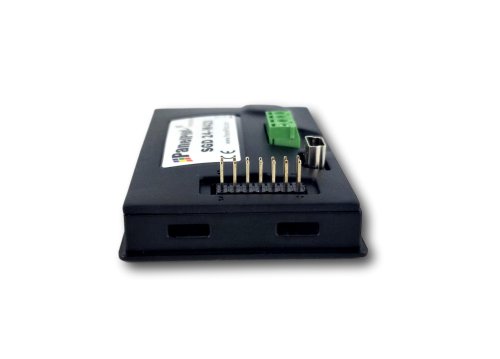

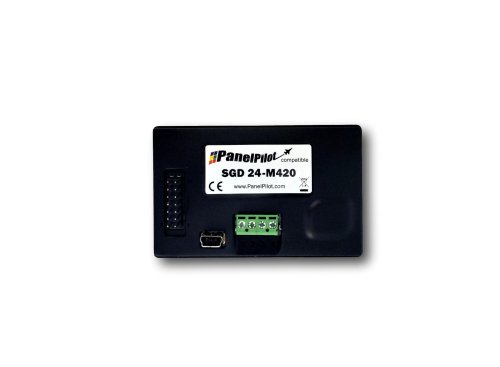

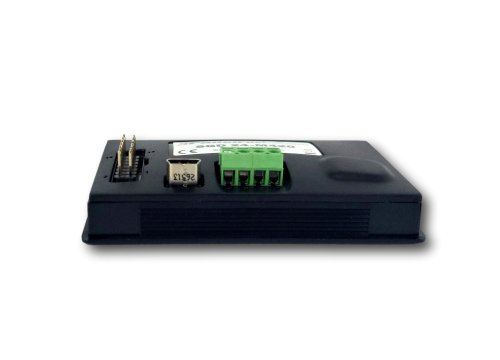

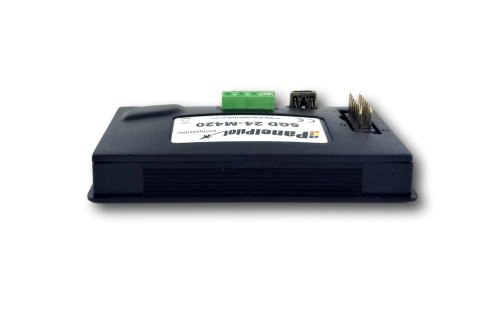

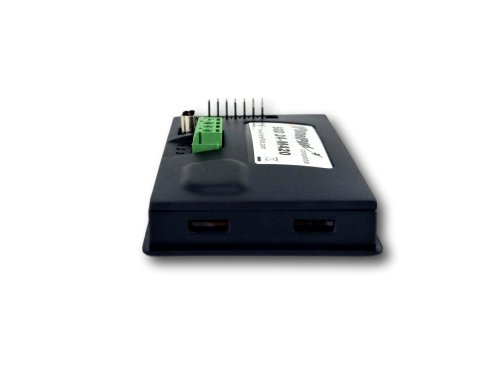

Panel or enclosure installation of the display is simple, using a panel fixing clip to mount the display, and 4 screw terminals to connect the inputs.
Features:
? 3.5? color TFT screen
? Programmable with USB interface
? Measures 4 - 20mA current loop (also 10-50mA or 0-50mA possible)
? Operating voltage of 4V-30V d.c.
? Simple panel mounting solution
? Accuracy (overall error): 0.05 to 0.1 % (?1 count)
? Linearity: ?1count
? Sample rate: 3 samples/sec
? Operating temperature range: 0 to 40 ?C
? Temperature stability: 100 ppm/?C
? Supply voltage: 4 to 30 V d.c.
? Supply current: 35 to 190 mA
? Measurement range: 0 to 50 mA
? Loop volt drop: 0-5 V
Using the PanelPilot software (compatible with 32-bit and 64-bit versions of Windows 7, 8 and 10), users are able to choose from an ever-increasing number of configurations (six voltmeters at launch) which can then be customized to their needs.
Colours, text labels, splash screen and input scaling can all be customized by the user through the software and then uploaded to the SGD 35-M through the USB connection.
Panel or enclosure installation of the display is simple, using a panel fixing clip to mount the display, and 4 screw terminals to connect the inputs.
Features:
? 3.5? color TFT screen
? Programmable with USB interface
? Measures 4 - 20mA current loop (also 10-50mA or 0-50mA possible)
? Operating voltage of 4V-30V d.c.
? Simple panel mounting solution
Specifications
? Accuracy (overall error): 0.05 to 0.1 % (?1 count)
? Linearity: ?1count
? Sample rate: 3 samples/sec
? Operating temperature range: 0 to 40 ?C
? Temperature stability: 100 ppm/?C
? Supply voltage: 4 to 30 V d.c.
? Supply current: 35 to 190 mA
? Measurement range: 0 to 50 mA
? Loop volt drop: 0-5 V
