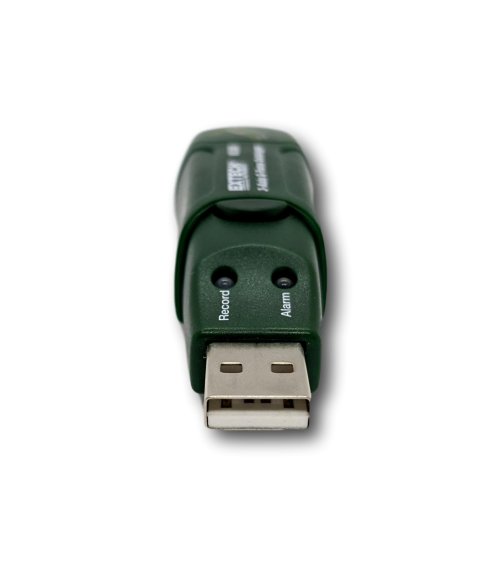

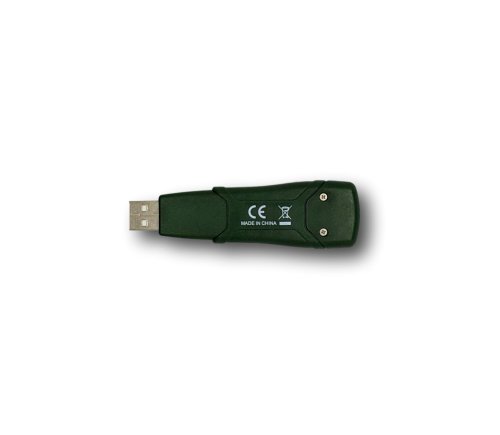

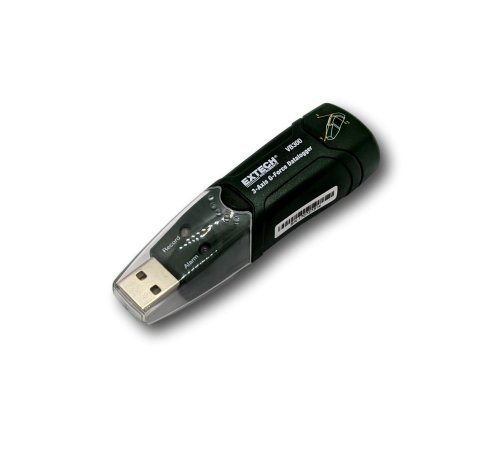

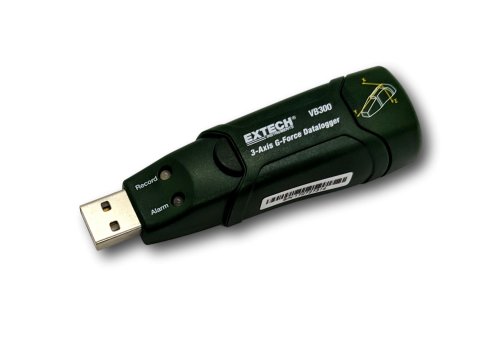

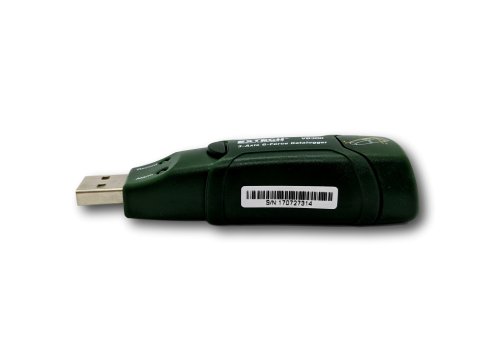

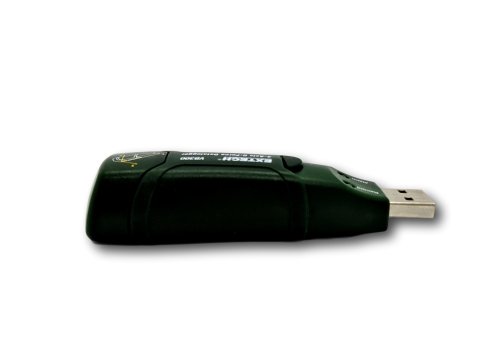

3-Axis G-Force USB Datalogger - IC-VB300
Backorder Now, once ordered your item will dispatch before the 14th of June 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

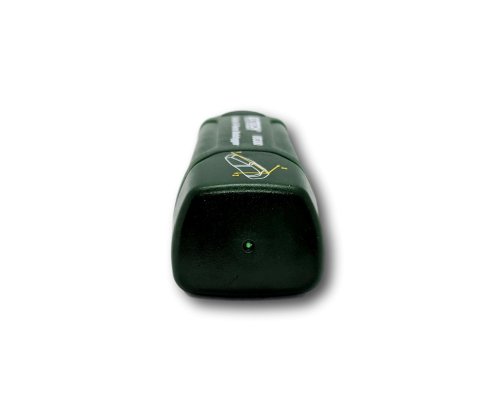

The VB300 is a G-Force data logger which records and times 3-axis shock and vibration (acceleration) readings over its +- 18g measurement range. This device will record 3-axis g-force and related peaks to provide a history of shock and vibration conditions.
Regular price
$459.10 AUD
+ GST
$505.01 AUD Inc. GST
$505.01 AUD Inc. GST

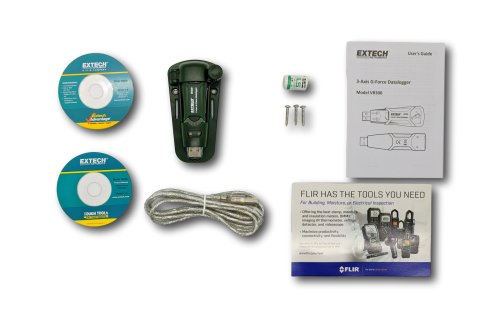

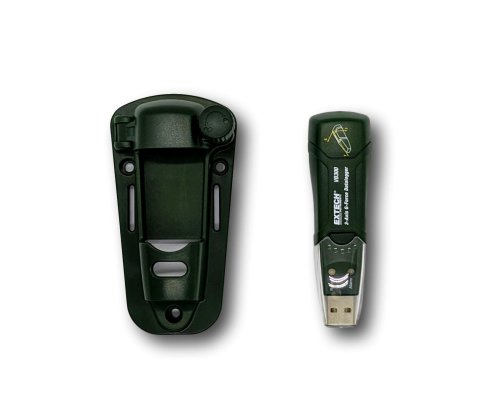

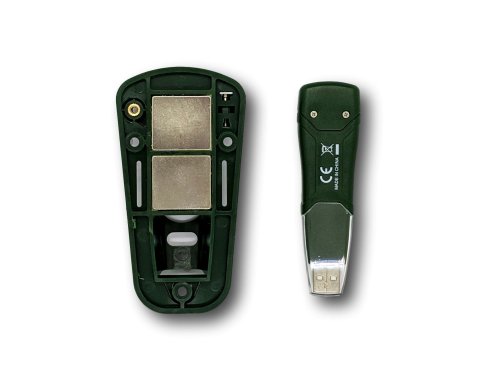

Complete with Magnetized/Bolt-on Mounting Base, 3.6V Lithium battery and Windows compatible analysis software.
Features:
Built-in 3-axis accelerometers record the time when shock occurs
Real time FFT Frequency and Time-Domain Vibration Analysis
Record storage, transport or operational data over time
USB interface for easy set-up and data download
Datalogs 112028 Motion Detection samples per axis, or 168042 Normal samples
Selectable X-, Y-, Z-axis or any combination (via software)
Selectable data sampling rate: 50ms to 24 hours
Manual and Programmable start modes
User-programmable alarm threshold
Long battery life
Complete with Magnetized/Bolt-on Mounting Base, 3.6V Lithium battery and Windows compatible analysis software
:
Acceleration Range: 18g
Acceleration Resolution: 0.00625g
Accuracy 0.5g
Frequency Range 0 to 60Hz
Datalog Memory 4MB Flash stores 168042 Normal recording records or 112028 Motion Detection records per axis.
Logging rate Selectable sampling interval: From 50ms up to 24 hours
Data format Time stamped peak acceleration and freefall; Average and Peak Vector sums
Computer PC interface: USB
Hardware requirements: 8MB RAM; 2MB Hard Drive space for software program; USB jack
System requirements: WindowsTM XP, VISTA, WindowsTM 7 (32 and 64 bit)
Operating temperature: 32 to 104F (0 to 40C)
Storage temperature: 0 to 140F (?10 to 60C)
Specifications
Acceleration Range: 18g
Acceleration Resolution: 0.00625g
Accuracy 0.5g
Frequency Range 0 to 60Hz
Datalog Memory 4MB Flash stores 168042 Normal recording records or 112028 Motion Detection records per axis.
Logging rate Selectable sampling interval: From 50ms up to 24 hours
Data format Time stamped peak acceleration and freefall; Average and Peak Vector sums
Computer PC interface: USB
Hardware requirements: 8MB RAM; 2MB Hard Drive space for software program; USB jack
System requirements: WindowsTM XP, VISTA, WindowsTM 7 (32 and 64 bit)
Operating temperature: 32 to 104F (0 to 40C)
Storage temperature: 0 to 140F (?10 to 60C)
