3 Phase Power Analyser/Logger Kit, 3 Clamps, 600V, 1200 Amp - ICDW6093
Backorder Now, once ordered your item will dispatch before the 25th of April 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).
$2,199.78 AUD Inc. GST
Includes free shipping, free returns plus our exclusive extended warranty, all valued at over $168.55

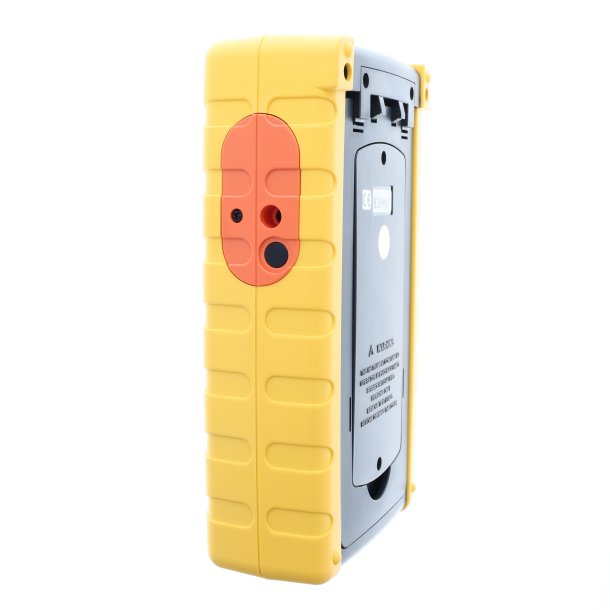

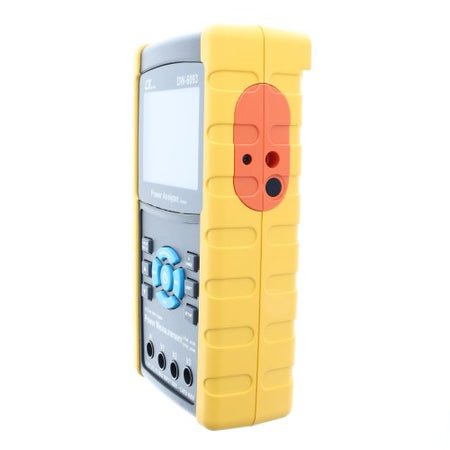

The Lutron DW-6093 Power Analyser is an economical measurement solution for a multitude of single phase and 3 phase applications (1P/2W, 1P/3W, 3P/3W and 3P/4W). It is easy to operate and has a clear 3.2"x2.4" LCD display. The package comes complete with three 1200 amp CT Clamps, test leads and alligator clips and a 2G SD card with a soft carry bag to store all components in. Your data is saved to the SD card which can store data blocks of 30000 lines with 9 pieces of data per line. This can then be transferred onto your PC directly from the SD card as an Excel spread sheet. From here you can analyse your results and manipulate your data to produce reports.
Complete kit comes with 4 x Test Leads, 4 x Alligator clips, 3 x 1200A Clamp Probes, AC to DC 9V adaptor, 2GB SD memory card and Carry bag.
This unit can also attach other CT sensors including the Lutron CP-200, CP-2000 and CP-3000, please call 1300 737 871 (NZ 0800600167) for details.
What does the ICDW6093 Measure?
ACV
ACA
AC WATT ( True Power )
AC WATT( Apparent Power )
AC WATT( Reactive Power )
Power factor
Phase angle
Frequency
ICDW6093 Features
Voltage and current readings given in true RMS values.
Voltage 10-600V IEC1010, CAT III 600V
Real power can be measured in KW, MW and GW
Apparent power in KVA, MVA and GVA;
Reactive power in KVAR, MAR and GVAR;
Measures Power Factor, Phase Angle and Frequency
Data Logging on 2G SD card for 2-7200 seconds intervals --- Real Time Clock
SD card stores data blocks of 30000 lines with 9 data per line
Why customers love the ICDW6093 3-Phase Power Analyser Kit
Analysis for 3 phase multi power systems 1P/2W, 1P/3W, 3P/3W and 3P/4W meaning it offers you the flexibility to analyse and fault find on virtually any power system
Comes supplied as a full kit including 3 x 1200 AMP rigid clamps, 4 test leads and alligator clips, a carry bag and an SD Card clamps meaning you are decked out from the start and not having to worry about additional items to get up and running.
With its ability to download straight from SD Card to PC as an Excel spreadsheet you can view data on virtually any computer and manipulate the data the way you wish.
Warranty
1 Year Manufacturer Warranty + Additional 1 Year Instrument Choice Warranty
