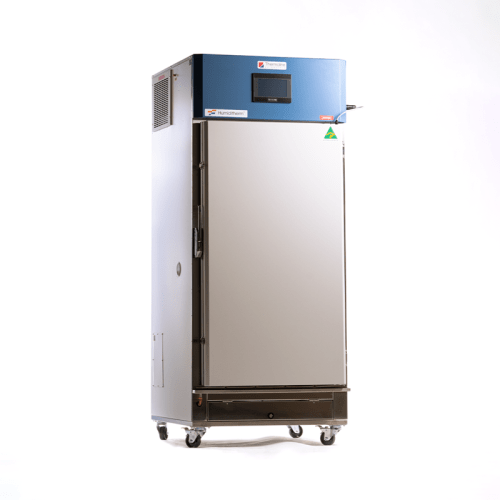

'-30 to +120 C Temperature and Humidity Cabinet

ORDER ME IN
Product code: TEC-460-SD

Backorder Now, once ordered your item will dispatch before the 31st of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

Premium temperature and humidity cabinet that can perform heating, cooling, humidification and dehumidification functions.

-Wide temperature range: -30°C to +120°C

-Advanced Alarm Systems with battery back up, high and low alarms, power fail and battery fail alarms.

-Internally constructed from 316 stainless steel and are externally constructed from Colorbond steel.

Read more

$46,630.00 AUD + GST
 $51,293.00 AUD Inc. GST
The TEC series manufactured by Thermoline offers precise control of temperature and humidity. This key model has the ability to perform
heating, cooling, humidification and dehumidification functions. This model features a wide temperature range of -30 to +120 C, has up to
600watts heat removal capacity and is internally constructed from 316 stainless steel and are externally constructed from Colorbond steel.
Features:
- Fan forced air supply delivers conditioned air throughout for precise internal conditions
- Temporal stability at set point better than 0.2C and 1%RH (unloaded chamber)
- Spatial accuracy measured to be better than 2C and 5%RH (unloaded chamber)
- Advanced Alarm Systems with battery back up, high and low alarms, power fail and battery fail alarms plus BMS connection
- Dehumidification via purpose built refrigeration system with air cooled condenser
- Heating and humidification provided through electric heating element
- Cooling provided via evaporator coils with in air handling system and electronic switching of solenoid valves
- High grade electronic temperature and humidity sensor
- 50mm cable port access point (additional ports available)
- Convenient manual or log book holder on side of cabinet
- Easy installation with optional gravity feed or pumped water tank
- Built in condensate drain system allows easy cleaning of internal trough generator

Specifications

- Temperature Range: -30 to +120 C
- Temperature Stability: +/- 0.2 C
- Temperature Uniformity: +/- 2.0 C
- Humidity Range: 20% to 95%
- Humidity Stability: +/- 1% RH
- Humidity Uniformity: +/- 5% RH
- Internal Dimensions (WxDxHmm): 650 x 650 x 1140
- External Dimensions (WxDxHmm): 820 x 950 x 1920
- Capacity (liters): 460
- Shelf Positions: Multiple
- Shelves Supplied: 4
- Electrical Supply: 240vac 15amps
- Heat Removal: Capacity at 10 C (watts) 600
- Weight (kg): 320
