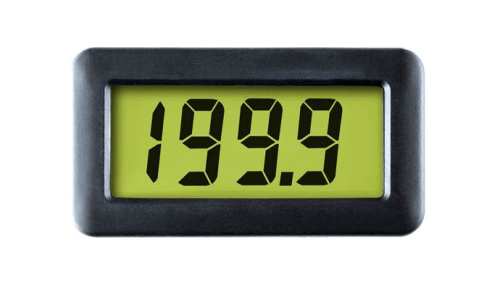

4-20mA loop powered, LED Backlit, Bezel mounted - IC-DPM 742-BL
Backorder Now, once ordered your item will dispatch before the 10th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).
The DPM 742-BL gives an accurate, zero adjusted indication of a 4-20mA current. Calibration is by two multi-turn potentiometers which allow sensitive adjustment of the instrument over a very wide range.
Regular price
$152.00 AUD
+ GST
$167.20 AUD Inc. GST
$167.20 AUD Inc. GST
Features:
3 Digit LCD Meter
Dual Channel Voltmeter
200mV Full Scale Reading
DIL Pin Connections
Bezel Mounted Module
Specifications
Accuracy (overall error): 0.05 to 0.1 % (1 count)
Linearity: 1count
Sample rate: 3 samples/sec
Operating temperature range: 0 to 50 C
Supply current: 4 to 20 mA
Back-light supply voltage: 4.75 to 5.0 V d.c.
Backl-ight supply current @ 5V d.c.: 30 to 50mA
Full scale reading (@20mA): 0 to 1999 Count
Offset adjustment range: -1900 to +1900 Count
