Features:
- Fan forced air supply via long life self cooling motors delivers conditioned air throughout for precise internal conditions
- Humidity accuracy at set point better than 0.2C and 1%RH (unloaded chamber)
- Spatial accuracy measured to be better than 2C and 5%RH (unloaded chamber)
- Dehumidification via purpose built refrigeration system with air cooled condenser
- Heating and humidification provided through electric stainless steel heating element
- Cooling provided via evaporator coils with in air handling system
- STAR 700 user friendly 7 color touch screen
- High grade electronic temperature and humidity sensor
- 50mm cable port access point (additional ports available)
- Convenient manual or log book holder on side of cabinet
- Easy installation with optional gravity feed or pumped water tank
- Built in condensate drain system to single exit point-allows easy cleaning of internal trough generator
STAR 700 Controller

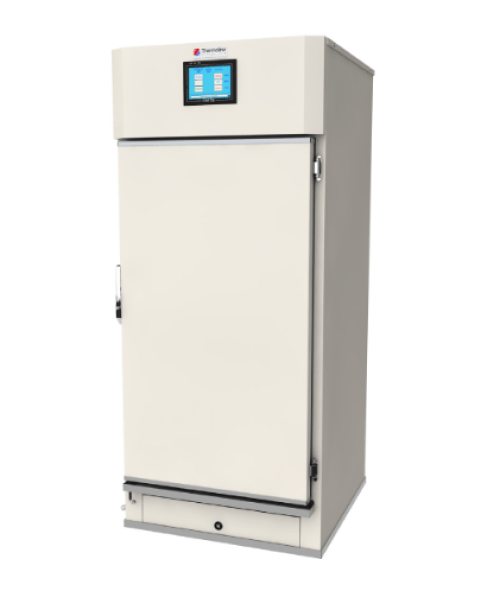

Envirotherm cabinets are powered by Thermoline's Select Touch And Run (STAR 700) touch pad control system. The STAR 700 touch pad control system offers easy to program diurnal control of temperature, lighting, humidity and carbon dioxide.
The STAR 700 features a large 154x87mm rugged full colour touchscreen, PC connectivity via ethernet cable and synchronize programmed settings which can be viewed in real time.
LED specifications:
-
400k: Because the light is neutral, not leaning in favor of red or blue spectrum, it can be described as standard and is the closest equivalent to Cool White T5 fluorescent lamps.
- Leaf (2700K): Leaf is the recommendation for plants and vegetables which should have an optimized vegetative growth. Due to increased spectral emission in the far red (more than 700 nm), as well as in the green (500 to 560 nm) spectral range, the growth of the plants or the vegetables can be positively influenced.
- Bloom (1900K): Bloom shows an optimized effect on ornamental plants and young seedlings, which need support in the flowering or in the initial growth stage. The spectrum is characterized by its focus on the blue and red spectral range, which provides maximum efficiency in photosynthesis.
Specifications
- Temperature Range: 5 to +40 C
- Humidity Range: 10% to 95%
- Internal Dimensions (WxDxH mm): 650 x 650 x 1140
- External Dimensions (WxDxH mm): 810 x 910 x 1900
- Capacity (litres): 460
- Shelf Positions: Multiple
- Lighting Style: 3x LED light trays per shelf
- Light Intensity at 20 C: 350 umols at 150mm
- Temperature Control Stability: +/- 0.2 C
- Temperature Spatial Variation: +/- 2.0 C
- Humidity Control Stability: +/- 1% RH
- Humidity Spatial Variation: +/- 5% RH
- Approx Weight (kg): 350
- Electrical Supply: 15 Amps/240 V
