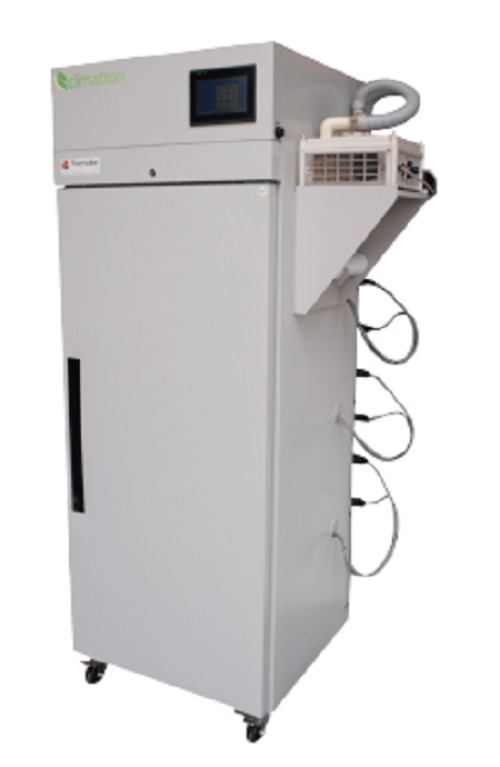

520L Refrig Temp/humidity Shelf Lighting

General features:

- Cabinet exterior is manufactured from grey Colorbond, whilst the interior is finished in 304 grade stainless steel which is highly corrosive resistant and easy to clean.
- Shelf lighting feature stainless steel shelf light trays are available with either four or six fluorescent lamps attached horizontally to the underneath side of the shelf light tray. Cabinets can be operated with up to twelve fluorescent lamps allowing for multiple combinations of shelf light trays.
- Environmental impact and operating costs are reduced with cabinets being well insulated with 100% CFC-free high efficiency injected polyurethane foam insulation.
- Accurate internal conditions are maintained by internal fan forced air flow behind a solid rear plenum which discharges conditioned air at the bottom of the internal liner creating upward airflow across product load for superior uniformity.
- All cabinets are supplied standard with self closing doors that will also remain open to enable product to be loaded easily when the door is fully opened. Doors are complete with magnetic gaskets and key locks for security.

Environmental control features:

- Comes with integrated humidity control features using ultrasonic humidifier which generates a fog or mist of water particles that are injected into the supply air. Ultrasonic humidifiers are proven to reduce humidifier energy costs by more then 90% over conventional resistive heating humidifiers.
- Climatron cabinets are powered by Thermoline's Select Touch And Run (STAR 700) touch pad control system. The STAR 700 touch pad control system offers easy to program diurnal control of temperature, lighting, humidity and carbon dioxide.
- Comes with a 154 x 87 mm rugged, touchscreen operator interface terminal which has a full colour TFT LCD display with LED Backlighting.
- With Ethernet connectivity to allow operation using a PC.
- Built-in data logging feature that can hold 800 days of logged data with additional memory storage options.
- Stored data can be exported using commonly used spreadsheet software.

Specifications

- Capacity (litres): 520
- Temperature Range: -5C to 45C (lights off)/+5C to 45C (lights on)
- Temperature Tolerance: Control +/- 0.2C/Spatial +/- 2.0C (unloaded lights off)
- Humidity Range: Ambient to 90%RH (lights off) and Ambient to 80%RH (lights on)
- Humidity Tolerance: Control +/-2% RH, Spatial +/-5% RH (unloaded lights off)
- CO2 range: Ambient to 3000 PPM
- Light Intensity at 20C
- Internal Dimensions (WxDxH mm): 600 x 550 x 1460 mm
- External Dimensions (WxDxH mm): 740 x 820 x 2040 mm
