Home > AGRETO Acre Meter AgriCounter Drive - IC-BZAC0020
Agreto

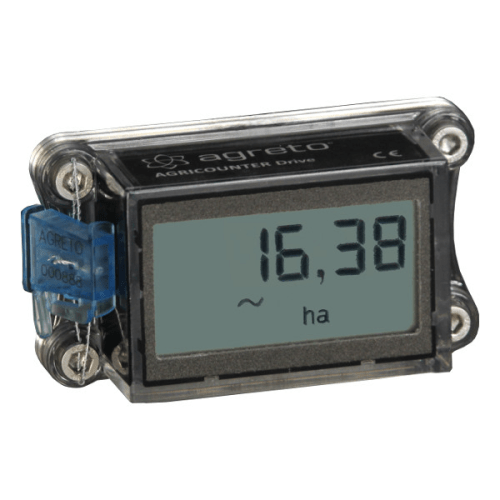

AGRETO Acre Meter AgriCounter Drive - IC-BZAC0020

ORDER ME IN
Product code: IC-BZAC0020

Backorder Now, once ordered your item will dispatch before the 16th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

Intelligent acre counter for tillage equipment or distance counter for transport vehicles.

-Counts the number of rotations and optionally also the operating hours, and displays distance (km) or area (ha).

-Works completely without an external power supply and without external sensors that can tampered.

- Mounted directly on a wheel or rotating part.

Read more

$539.50 AUD + GST
 $593.45 AUD Inc. GST
Features:
- This hectare meter pays for itself in a very short time: The estimation of the processed areas for rental machines costs the landlord real money. It is always rounded off or not recorded truthfully. With the AgriCounter, guessing comes to an end, now it is billed truthfully.
- Absolutely tamper-proof: The AgriCounter Drive works completely without an external power supply and without external sensors susceptible to manipulation. The meter is screwed firmly to the machine during assembly and 2 screws are secured with a clearly numbered seal. Thereafter, zeroing, setting parameters or removing the batteries are only possible by visibly breaking the seal.
- Robust and waterproof acre meter - IP69K = high pressure cleaner resistant: The robust housing without externally accessible sealing surfaces guarantee reliable operation under all operating conditions.
- Objective basis for the billing of your machines and implements: With the AgriCounter Drive, the billing of the machine application can be carried out according to the real wear-relevant service life. Service intervals can also be optimized.
- Universal use through different operating modes: When delivered, the meter is a standard hectare meter (operating mode a). For special applications it can be configured before installation.
Device data:
- Activation by rotation of the counter around its own axis
- Counts and adds up the number of revolutions
- Calculation of the distance using the adjustable wheel circumference
- Calculation of the area via adjustable working width
- Display of the results can be selected by setting the operating mode
- Additional determination of the operating hours possible
- Hour display optionally in hours and minutes or hours with 2 decimal places
- Possibility to set the necessary intensity of the movement for the activation of the hour counter
- Setting option of a bridging time for reliable, continuous hour counting
- Large, easy-to-read, permanently on LCD display
- Six-digit display of hours with 11 mm high digits
- Icons for displaying the operating mode and status information
- Robust, one-piece plastic housing without visible sealing surfaces
- Waterproof according to protection class IP69k (high-pressure cleaner-proof)
- Tamper-proof by sealing the housing screws
- Zeroing, setting and changing the battery is only possible by visibly violating the seal
- Powered by 2 supplied AAA batteries
- Battery life with standard alkaline batteries approx. 3 years
- Dimensions: 93 x 52 x 33 mm (WxDxH)
