Air velocity and temperature transmitter - CTV210

ORDER ME IN
Product code: CTV210

Backorder Now, once ordered your item will dispatch before the 10th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

The CTV 210 air velocity and temperature transmitter models have configurable range from 0 to 50C in temperature and from 0 to 30 m/s (model with hot wire probe) and from 0 to 5 m/s(model with omnidirectional probe) in air velocity.

Read more

$759.70 AUD + GST
 $835.67 AUD Inc. GST
Features:
- Configurable ranges from 0 to 30 m/s (model with hot wire probe) and from 0 to 5 m/s(model with omnidirectional probe)
- Configurable range from 0 to 50 C in temperature
- Airflow function
- 4 wires analogue output 0-5/10 V or 0/4-20 mA
- Power supply 24 Vdc/Vac or 115/230 Vac
- Trend indicator
- ABS V0 IP65 housing, with or without display
- turn system mounting with wall-mount plate

Specifications Temperature:

Measuring range

From 0 to 50 C

Accuracy*
0.3 % of reading 0.25 C

Type of sensor

Pt100 1/3 as per DIN IEC751

Response time

T90 = 0.9 second for Vair = 1 m/s

Resolution
0.1 C / 0.1 F

Type of fluid
Air and neutral gas

Specifications Air Velocity:

Measuring range

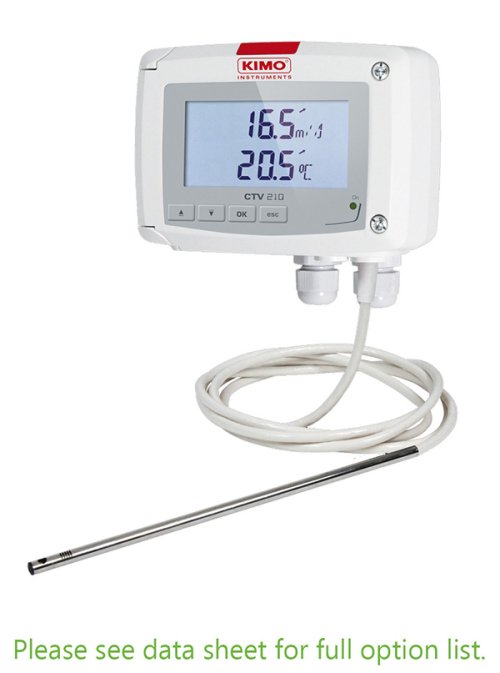

Standard model : from 0 to 30 m/s

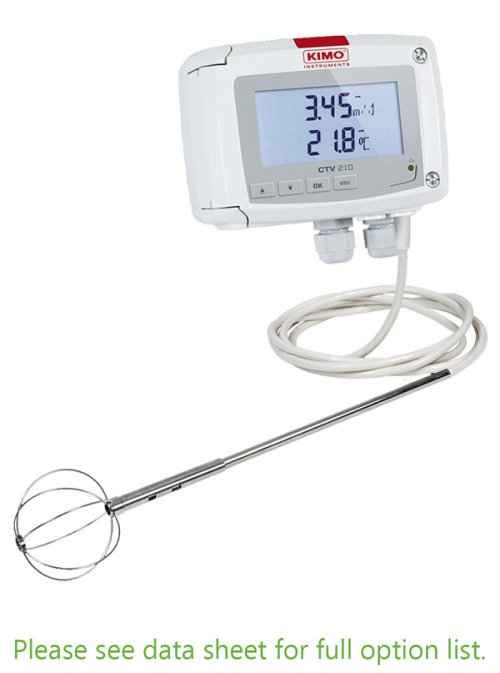

Omnidirectional model : from 0 to 5 m/s
Accuracy* (standard and omnidirectional models)
 Standard model :
- from 0.15 m/s to 3 m/s : 3 % of reading 0.03m/s
- from 3 to 30 m/s : 3 % of reading 0.1 m/s
Omnidirectional model : from 0 to 5 m/s : 3 % ofreading 0.05 m/s

Units of measurement

m/s, fpm, km/h

Response time

T63 = 1.6 s

Resolution
Standard model : from 0 to 3 m/s : 0.01 m/s andfrom 3 to 30 m/s : 0.1 m/s
Omnidirectional model : from 0 to 5 m/s : 0.01 m/s
All models : 1 fpm / 0.1 km/h

Type of fluid
Clean air
*All the accuracies indicated in this technical datasheet were stated in laboratory conditions, and can be guaranteed for measurements carried out inthe same conditions, or carried out with calibration compensation.

Select the option that suits you the most:
CTV210 + Power supply/Output
B= 24 Vac/Vdc
H= 115 or 230 Vac 		+ Display
O=with display
N=without display 		+ Mounting of the probe
S=standard
O= omnidirectional


Material : ABS V0 as per UL94
Protection : IP65

Dimensions:
Display: 75 x 40 mm, LCD 20 digits 2 lines.
Height of digits: Value: 10 mm ; Unit: 5 mm
Cable gland: for cables 8 mm maximum
Weight : 320 g
