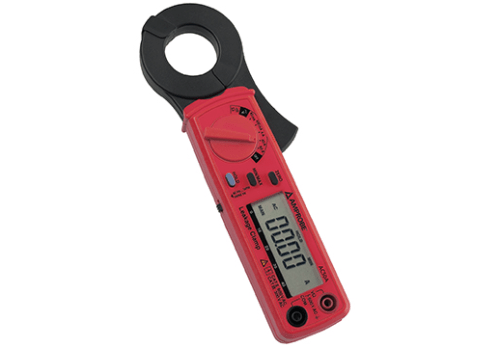

Amprobe AC50A AC Leakage Clamp Meter

ORDER ME IN
Product code: IC-AC50A

Backorder Now, once ordered your item will dispatch before the 13th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

The Amprobe AC50A Clamp Multimeter with leakage current capability measures low AC current in the microamps. Great for applications requiring measurement of leakage and fault currents.

Read more

$887.00 AUD + GST
 $975.70 AUD Inc. GST

Features:

- AC current measurement to 60 A
- Leakage current measurement with resolution of 0.01 mA
- AC voltage to 400 V
- Resistance measurement and continuity beeper
- Min/max control to see largest or smallest values in a series of measurements
- Relative value measurement to determine differentials
- Data hold to freeze measurement value on the display
- Digital display with analog bar graph
- Jaw opening 1.2 inch.
- Auto-power off to save battery life
- Minimum resolution 0.01 mA

Specifications

- AC Voltage: 400.0 V
- AC Current: 40.00 mA, 400.0 mA, 4.000 A, 40.00 A, 60.0 A
- Resistance: 400 Ohms
- Accommodates conductors: up to 1.2 (30 mm) in diameter
- Display: 3-3/4, LCD incl. functions and symbols
- Bar graph: 40 segments
- Range selection: manual
- Auto-power off: approx. 30 min.
- Overload display: the left digit is blinking
- Measuring rate: 20 measurements/sec. (Bar graph), 2 measurements/sec. (LCD)
- Clamp opening: 1.2 inch (30 mm)
- Over voltage category: CAT II 600 V, CAT III 300 V
- Pollution degree: 2
- Height above MSL: up to 2000 m, indoor operation
- Battery display: at low battery
- Power supply: Battery 2 x 1,5 V IEC LR6 (alkaline)
- Current consumption: approx. 10 mA
- Operation temperature: -10 to 50 C (14 to 122 F)
- Storage temperature: -20 to 60 C (-4 to 140 F)
- Humidity: less than 75 % relative humidity
