Home > Amprobe AMP-320 600A AC/DC TRMS Motor Maintenance Clamp Meter
Amprobe

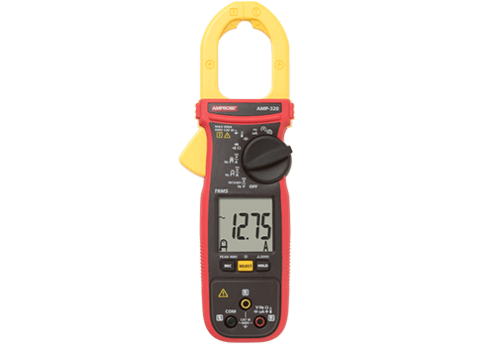

Amprobe AMP-320 600A AC/DC TRMS Motor Maintenance Clamp Meter

ORDER ME IN
Product code: IC-AMP-320

Backorder Now, once ordered your item will dispatch before the 13th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

Whether you need an amp clamp for HVAC, general electrical or motor testing applications, the AMP-320 Clamp Meter, with its large backlit display, has the features you need. HVAC technicians will find the temperature and capacitance measurements they need plus DC Microamps for testing flame sensors. It also had core motor testing capabilities such as motor rotation, 3-phase sequence testing, and inrush current measurement for motor start-up monitoring.

Read more

$482.00 AUD + GST
 $530.20 AUD Inc. GST

Features:

- Measures AC/DC Current to 600 A and AC/DC Voltage to 600 V
- Measures temperature from -40 to 400 C (-40 to 752 F)
- Measures DC Microamps output to test proper operation of the flame sensor on gas appliances
- Measures capacitance, test diodes, and features a continuity beeper
- Tests 3-phase sequence and motor rotation to ensure proper connection of a motor to a 3-phase system
- Monitors inrush current during motor start-up
- Features True-RMS sensing for accurate voltage measurements in noisy electrical environments
- Amp-Tip function delivers precise low AC current measurements 0 to 60 A
- Includes a low pass filter to accurately measure voltage and current on variable frequency drives
- Provides resistance and continuity measurement capabilities to verify the quality of electrical connections and the proper operation of motor and transformer coils
- Provides data hold, relative zero, and MAX/MIN/AVG mode for quick analysis
- Maximizes battery life with auto power off and low battery indicator
- Backlit display for easy measurement viewing in bright and dim environments
- CAT III 600 V safety rated
- Accommodates conductors up to 1.37 inches (35 mm)

Specifications

AC voltage (True-rms):

- Range: 0 to 600.0 V
- Accuracy: +/- 1.0% + 5LSD (50 to 60 Hz)

DC voltage:

- Range: 0 to 600.0 V
- Accuracy: +/- 1.0% + 5LSD

AC+DC voltage:

- Range: 0 to 600.0 V
- Accuracy: +/- 1.2% + 7LSD (50 to 60 Hz)

AC current:

- Range: 0 to 600.0 A
- Accuracy: +/- 1.8% + 5LSD (50 to 60 Hz), +/- 2.0% + 5LSD (100 to 400 Hz)

DC current:

- Range: 0 to 600.0 A
- Accuracy: +/- 2.0% + 5LSD (DC 50 to 100 Hz)

AC+DC current:

- Range: 0 to 600.0 A
- Accuracy: +/- 2.2% + 7LSD (DC 50 to 100 Hz), +/- 2.7% + 7LSD (100 to 400 Hz)

Precise low current AC:

- Range: 0 to 60.00 A
- Accuracy: +/- 1.5% + 5LSD (50 to 60 Hz)
