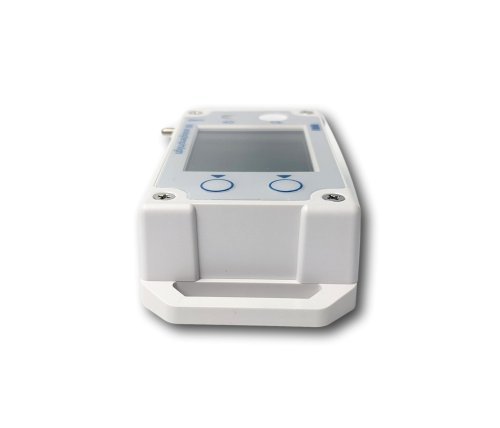

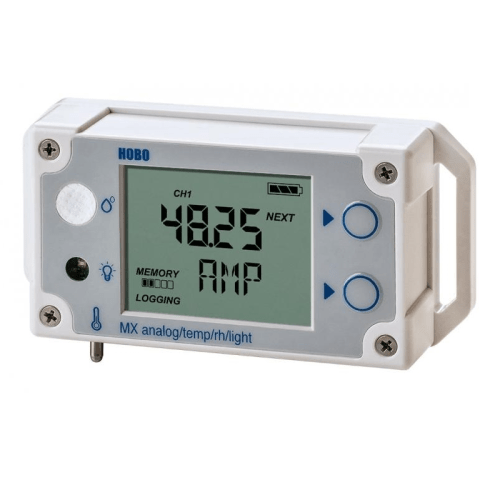

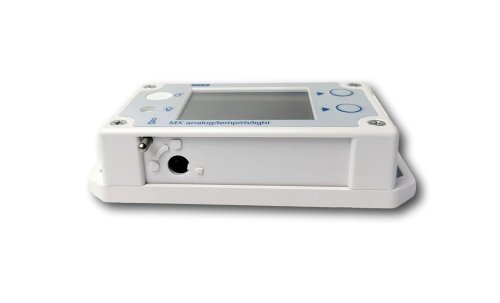

Analogue/Temp/RH/Light Data Logger - IC-MX1104

The HOBO MX1104 multi-channel data logger measures and transmits temperature, relative humidity, and light intensity data wirelessly. It also includes an external analog input to attach a variety of additional sensors.

This self-contained wireless data logger lets you use your mobile device and Onset's free HOBOmobile app for iOS to access data, at any time, over a 100-foot range via Bluetooth Low Energy (BLE) technology. You can configure the logger, read out data, view data in graphs, check the operational status of loggers, configure alarm notifications, and share data files - all with no dedicated equipment beyond a mobile device. And if used with the new MX Gateway, you can remotely access your data in Onset's cloud-based HOBOlink software.

Features:

- BLE communications for wireless data offload
- 16-bit resolution for highly accurate measurements
- Stores 1.9 million measurements for longer deployments between offloads
- New Self-Describing sensors with automatic configuration for fast deployment
- Compatible with existing sensors for a wide range of indoor monitoring
- Audible and visual LCD-screen alarms notify you if sensor becomes unplugged or a reading exceeds set thresholds

In what environment does this data logger operate?
This data logger operates in an indoor environment.

What measurements does this data logger support?
The MX1104 data logger supports the following measurements: 4-20mA, AC Current, AC Voltage, Air Velocity, Carbon Dioxide, Compressed Air Flow, DC Current, DC Voltage, Dew Point, Differential Pressure, Gauge Pressure, Kilowatts (kW), Light Intensity, Relative Humidity and Temperature

The HOBO MX1104 data logger requires the HOBOmobile App for iOS and a compatible mobile device. The system requirements for the HOBOmobile app can be found at the bottom of the HOBOmobile software page.

Warranty - 1 Year Manufacturer Warranty + Additional 1 Year Instrument Choice Warranty

Specifications

Temperature:

- Range: -20 to 70 C (-4 to 158 F)
- Accuracy: +/- 0.20 C from 0 to 50 C (+/- 0.36 F from 32 to 122 F)
- Resolution: 0.002 C at 25 C (0.004 F at 77 F)
- Drift: less than 0.1 C (0.18 F) per year

RH:

- Range: 0% to 100% at -20 to 70 C (-4 to 158 F); exposure to conditions above 95% may temporarily increase the maximum RH sensor error by an additional 1%
- Accuracy: +/- 2.5% from 10% to 90% (typical) to a maximum of +/- 3.5% including hysteresis at 25 C (77 F); below 10% and above 90% +/- 5% typical
- Resolution: 0.01%
- Drift: less than 1% per year typical

Light:

- Range: 0 to 167,731 lux (15,582 lum/ft2)
- Accuracy: +/- 10% typical for direct sunlight (see Light Measurement on page 4 for more details)

Data Logger:

- Operating Range: -20 to 70 C (-4 to 158 F)
- Radio Power: 1 mW (0 dBm)
- Transmission Range: Approximately 30.5 m (100 ft) line-of-sight
- Wireless Data Standard: Bluetooth Low Energy (Bluetooth Smart)
- Logging Rate: 1 second to 18 hours
- Logging Modes: Fixed interval (normal, statistics) or burst
- Memory Modes: Wrap when full or stop when full
- Start Modes: Immediate, push button, date & time, or next interval
- Stop Modes: When memory full, push button, date & time, or after a set logging period
- Restart Mode: Push button
- Time Accuracy: +/- 1 minute per month at 25 C (77 F)
- Battery Type: Two AAA 1.5 V alkaline batteries, user replaceable
- Battery Life: 1 year, typical with logging interval of 1 minute and Bluetooth Always On enabled; 2 years, typical with logging interval of 1 minute and Bluetooth Always On disabled; and temperatures between 0 and 50 C (32 and 122 F). - Faster logging intervals and statistics sampling intervals, burst logging, remaining connected with the app, excessive downloads, and paging may impact battery life.
- Memory: 4 MB (1.9 million measurements, maximum)
- Full Memory Download Time: Approximately 4 to 15 minutes depending on the mobile device; may take longer the further the device is from the logger
- LCD: LCD is visible from 0 to 50 C (32 to 122 F); the LCD may react slowly or go blank in temperatures outside this range
- Size: 11.28 x 5.41 x 2.92 cm (4.44 x 2.13 x 1.15 in.)
- Weight: 123 g (4.34 oz)
- Environmental Rating: IP54
