BACnet MS/TP Weather Station Gateway

ORDER ME IN
Product code: KTA-302

Backorder Now, once ordered your item will dispatch before the 01st of June 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

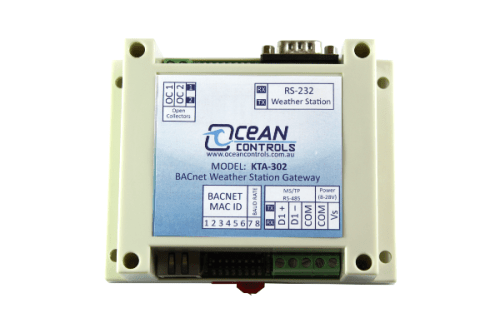

The KTA-302 BACnet MS/TP Weather Station Gateway is a BACnet MS/TP version of our KTA-282 Modbus Weather Station Gateway, designed to handle building automation demands.

-The gateway allows you to easily connect your BACnet network to many Davis weather stations.

Read more

$345.00 AUD + GST
 $379.50 AUD Inc. GST
The KTA-302 BACnet MS/TP Weather Station Gateway is a BACnet MS/TP version of our KTA-282 Modbus Weather Station Gateway, designed to handle building automation demands.
The gateway allows you to easily connect your BACnet network to one of the following Davis weather stations:
- 6152 Cabled Vantage Pro 2
- 6162 Cabled Vantage Pro 2 Plus
- 6152 Wireless Vantage Pro 2
- 6162 Wireless Vantage Pro 2 Plus
- 6153 Wireless Vantage Pro 2 Fan Aspirated
- 6163 Wireless Vantage Pro 2 Plus Fan Aspirated
- 6316 Wireless Weather Envoy (with Wireless ISS, ISS Plus, ISS Solar Fan Aspirated or ISS Plus Solar Fan Aspirated)
- 6250 Vantage Vue
The gateway plugs into the weather station's console using the Davis WeatherLink cable (Weather Link for Vantage Pro Serial) and appears on the BACnet network. This allows your SCADA system or other BACnet devices in your network to monitor and carry out actions based on wind speed, wind direction, temperature, etc.

Specifications

- Power Supply: 8 to 28VDC
- Power Consumption: 100mW
- Operating Temperature: 0 to 70 C
- Output: Two Open Collector outputs for alarms or control
- Protocol: BACnet MS/TP over RS-485 compatible
- BACnet network parameters easy configurable by onboard switches.
- Supports BACnet device and object discovery.
- Gives you all provided data from the weather station, which includes other 16 values that were previously unavailable weather data.
- Allows you to configure unit conversions.
- Dimensions: 115 x 90 x 40 mm. The unit can be screwed to a panel, or mounted to DIN rail.
