Boiler and Cooling Tower pH Portable Meter - IC-HI99141
Backorder Now, once ordered your item will dispatch before the 21st of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

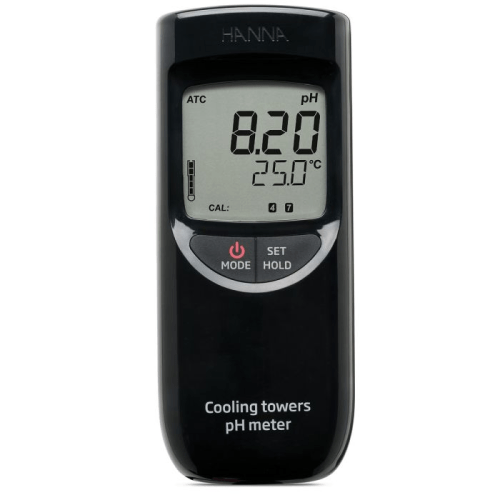

The HI99141 is a waterproof, portable pH and temperature meter specifically designed for boilers and cooling towers.
- - Includes the HI729113 pre-amplified double junction pH probe with titanium body that features a flat tip sensor that is easy to clean and prevents solids in solutions from collecting on the sensor.
- - Features a large multi level LCD screen which displays both pH and temperature readings simultaneously with 0.01 pH resolution.
- - Also features BEPS - Alerts the user of low battery power that could adversely affect readings.
Regular price
$899.55 AUD
+ GST
$989.51 AUD Inc. GST
$989.51 AUD Inc. GST
The HI99141 meter features a large multi level LCD screen which displays both pH and temperature readings simultaneously with 0.01 pH resolution and an accuracy of 0.02 pH. The LCD screen also has indicators for calibration status and stability, as well as on-screen tutorial messages. The HI99141 has many advanced features that are found in more expensive portable instrumentation including automatic calibration, buffer recognition,and temperature compensation. The battery percent level is displayed at start up alerting the user to the remaining battery power that is available.
The HI99141 is supplied with the amplified titanium body pH/temperature electrode. The titanium body is resistant to many aggressive chemicals and extremely durable.The titanium body acts as a matching pin for the flat tip pH electrode. A matching pin is a differential measurement technique used to eliminate electrical noise in a pH measurement system. The matching pin coupled with a pre-amplifier provides for an increased response time in pH measurement and extends the electrode life.
The HI729113 also features a large annular polytetrafluoroethylene (PTFE) junction. This large junction is resistant to chemicals but has a large surface area allowing for maximum diffusion of ions from the inside of the reference electrode into the sample resulting in a fast, stable reading. The flat tip pH electrode with a PTFE junction in a titanium body make the HI729113 ideal for the water treatment industry.
The HI12963 pH electrode also features an extractable cloth junction. The extractable cloth junction of the HI12963 allows for the renewing of the junction.
3 Year Warranty (2 Year Manufacturer Warranty + Bonus 1 Year Instrument Choice Warranty)
HI99141 Features
- Unbreakable titanium body: Titanium construction provides an unbreakable structure and allows the transfer of heat to the internal temperature sensor for rapid temperature compensation
- Maintenance free, gel-filled electrode: No fill solution requiredAutomatic Temperature Compensation
- One or two-oint automatic calibration
- BEPS - Alerts the user of low battery power that could adversely affect readings
- Compact, heavy-duty, and waterproof
- Battery % displayed on start-up
- HELP feature displays tutorial messages on LCD

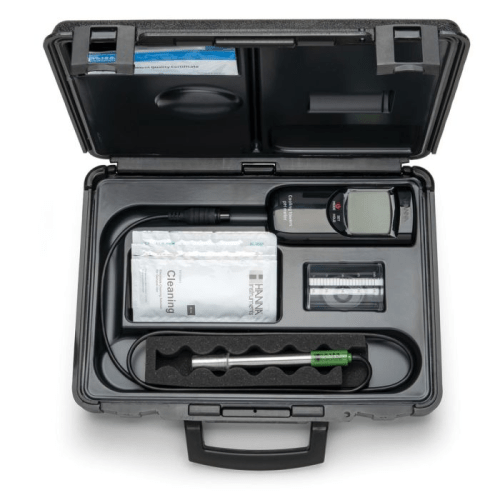

Standard package includes:
The HI99141 is supplied with HI729113 pH probe, HI70004 pH 4.01 buffer solution sachet (1), HI70007 pH 7.01 buffer solution sachet (1), HI700601 electrode cleaning solution sachets (2), batteries, 100 mL beaker (1), instructions, calibration certificates for meter and probe, and rugged thermoformed carrying case.
Specifications
pH Range
|
-2.00 to 16.00 pH; -2.0 to 16.0 pH
|
pH Resolution
|
0.01 pH; 0.1 pH
|
pH Accuracy
|
+/- 0.02 pH; +/- 0.1 pH
|
pH Calibration
|
automatic, at one or two points with two sets of standard buffers (pH 4.01 / 7.01 / 10.01 or pH 4.01 / 6.86 / 9.18)
|
pH Temperature Compensation
|
automatic, 5.0 to 105.0 C/23.0 to 221.0 F
|
pH CAL Check (electrode diagnostics)
|
probe condition indicator
|
mV Range
|
+/- 825 mV (pHmV)
|
mV Resolution
|
1 mV (pHmV)
|
mV Accuracy
|
+/- 1 mV (pHmV)
|
Temperature Range
|
-5.0 to 105.0 C / 23.0 to 221.0 F
|
Temperature Resolution
|
0.1 C / 0.1 F
|
Temperature Accuracy
|
+/- 0.5 C (up to 60 C); +/- 1.0 C (outside) / +/- 1 F (up to 140 F); +/- 2.0 F (outside)
|
pH Electrode
|
HI729113 titanium body, pre-amplified pH electrode with internal temperature sensor, quick connect DIN connector and 1 m (3.3 cable) (included)
|
Automatic Shut-Off
|
user selectable
|
Battery Type/Life
|
1.5V (3) AAA / approximately 1400 hours of continuous use
|
IP Protection
|
IP67
|
Environment
|
0 to 50 C (32 to 122 F); RH max 100%
|
Dimensions
|
154 x 63 x 30 mm (6.1 x 2.5 x 1.2)
|
Weight
|
196 g (6.91 oz.)
|
Weight
|
196 g (6.91 oz.)
|
Battery Type/Life
|
1.5V AA batteries / approximately 200 hours of continuous use without backlight (50 hours with backlight)
|
Environment
|
0 to 50 C (32 to 122 F); RH 100%, IP67
|
Dimensions
|
185 x 93 x 35.2 mm (7.3 x 3.6 x 1.4 inch)
|
Weight
|
400 g (14.2 oz)
|
