Guardian2: Dust and Noise

ORDER ME IN
Product code: IC-CML208175D

Backorder Now, once ordered your item will dispatch before the 25th of June 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

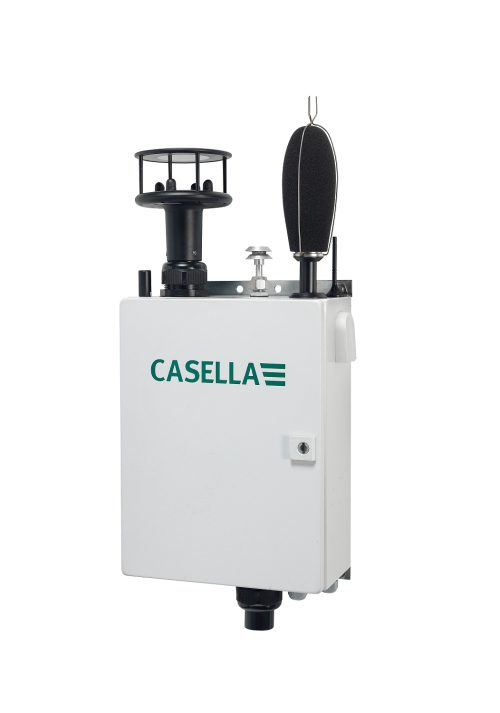

The Guardian2: Dust amd Noise Boundary Monitor is designed to help you remain compliant with site emission and noise levels, using remote monitoring and reporting of dust and noise levels.
Regular price $24,080.00 AUD + GST
$26,488.00 AUD Inc. GST

The Guardian2: Dust amd Noise Boundary Monitor is designed to help you remain compliant with site emission and noise levels, using remote monitoring and reporting of dust and noise levels.

The Guardian2 includes Casella's "mHub" logger with a built in "E-sim" simcard. The E-sim has low data costs and searches several networks to ensure the highest possible signal strength, helping to ensure good data connectivity.

Data is available in real time from our secure website http://www.casella247.com/ using a private login. A report can be readily produced for site dust or noise compliance purposes and in addition, the system provides alerts via text message or an email should limits be exceeded. Reports can be easily be automated and sent to multiple users. For example, one user can be receiving a report about pm10 monitoring dust levels, where another user can receive a report about noise risk assessment measurement levels.

The innovative Guardian2 is optionally equipped with a photoionization detector (PID) to measure for VOCs up to 6,000 ppm (parts per million), assessing the emissions and air quality of a site.

- Real time dust (PM10, PM2.5 and PM1.0 simultaneously)
- IEC61672-1 Compliant noise measurements for accurate results measuring several parameters (e.g. LAeq, LAFmax, LN%)
- Powered by mains (100-250VAC).Solar power and battery pack options are available.
- Email and text alerts to nominated recipients
- Manual or automatic reports
- Add VOC monitoring capabilities to this Guardian2 using SKU 208052D/VOC

Plug In and Play

Integrated into a small, unobtrusive environmentally sealed housing, Guardian2 can be configured at the time of ordering for a variety of "agents: depending upon the specific application or requirements. Installation couldn't be simpler; just bolt to a wall or mount on a pole, apply power and then within a few moments begin transmitting data using cellular connectivity to a secure server.

Configure Reports

- For single or multiple agents at once
- Automatic reports can be set to report daily, weekly or monthly data, direct to your inbox
- Graphical or tabular reports Alert Configuration
- Configure alerts by text or email
- Can be configured for any measured parameter
- Error alerts, e.g. for power loss, User Configuration
- Different levels of access can be configured to casella247.com
- Specify who just receives reports, or administrator access to configure reports and Guardian2 units
- Configure Guardian2 units on different sites remotely

Specifications

Particulate:

- Sensitivity: 1ug/m3
- Zero stability: +/-2ug/m3
- Size fractions: Simultaneous PM10, PM2.5 and PM1.0
- Inlet: Heated to reduce moisture affecting measurements

Noise:

- Accuracy: Class 1 to IEC61672-1
- Parameters: LAeq, LAmax, LAmin LA10%, LA90%, 10 hour LAeq
- Measurement range: 20 to 140dB
- RMSCalibration: Via optional acoustic calibrator

General:

- Enclosure Protection: IP65
- Operating Humidity: <5% to 100%
- Logger: Built-in logger data transmission via GPRS
- Main Power: 100-250VAC
- Mounting: Wall or pole mounted (50mm pole).
- Dimensions: 400mm x 300mm x 150mm
- Weight: <13kg
