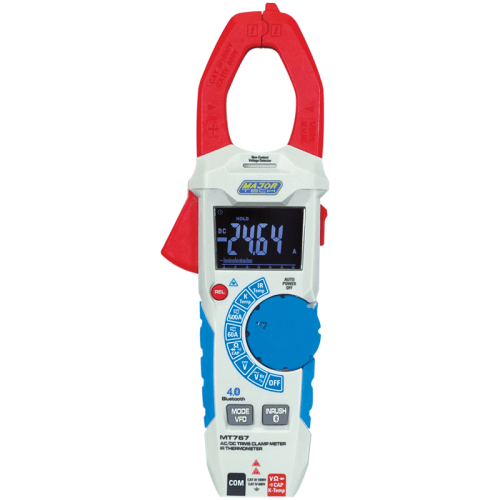

MT767 BT 600A AC/DC Thermometer Clamp Meter
Backorder Now, once ordered your item will dispatch before the 17th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).
The MT767 is a 600A AC/DC thermometer clamp meter with Bluetooth technology that measures 1000V AC/DC, frequency, capacitance and resistance measurements.
- Precision instrument that offers accurate measurements and fast sampling rates.
- The IR Thermometer has a spot ratio of 4:1 and measures temperature from -30 to +350 C, plus there is a K-Type thermometer input for measurements up to 1000 C.
- Offers many additional features such as Capacitance Zero and DCV, ACV and ACA offset adjustment, Non-Contact voltage detection and much more.
Regular price
$399.40 AUD
+ GST
$439.34 AUD Inc. GST
$439.34 AUD Inc. GST
The MT767 is a 600A AC/DC Thermometer Clamp Meter with Bluetooth technology. This clamp meter has a large 6000 count negative LCD display that provides fast sampling times and high accuracy measurements. The Bluetooth function allows the user to transmit data to the Android or iOS mobile App for viewing, organizing and sharing recordings. The meter measures 1000V AC/DC, frequency, capacitance and resistance measurements.
The IR Thermometer has a spot ratio of 4:1 and measures temperature from -30 to +350 C, plus there is a K-Type thermometer input for measurements up to 1000 C. The 100ms Inrush current detects starting up currents of electric motors, input surge current, or switch-on surge currents, this is the maximum instantaneous input current drawn by an electrical device when first turned on. The VFD function allows the user to measure stable voltage in high frequency applications of Variable Frequency Drives.
The added features or this 600A AC/DC Thermometer Clamp Meter include Relative mode for Capacitance Zero and DCV, ACV and ACA offset adjustment, Non-Contact voltage detection, MAX/MIN and Data hold function plus a built-in flashlight for dimly lit areas. Housed in a modern double moulded rubber housing with a rugged design. This meter is a useful measuring tool for electricians, maintenance and HVAC environments.
Features:
- Bluetooth
- 6000 count negative LCD display
- 33mm diameter Cable Clamp size
- Measurement of DC voltage and AC voltage up to 1000V
- AC and DC Current measurement to 600A
- Capacitance to 99.99mF
- Resistance 60 milliohms
- Frequency of 9.99kHz
- K- Type Temperature measurement from -20 to 1000 C
- IR Temperature Spot Ratio 4:1 & measurement from -30 to 350 C
- Duty Cycle: 20 to 80%
- INRUSH Current Measurements
- VFD Variable Frequency Drive voltage value
- NCV Non-Contact Voltage Detector
- Continuity buzzer and Diode Test
- Built-In Flashlight
- Max/Min
- Data Hold function
- Auto Power Off
Specifications
- DC Current: 0.01A to 600A x 10mA +/- (2.8% + 5 Digits)
- AC Current: 0.001A to 600A x 10mA +/- (1.5% + 10 Digits)
- DC Voltage: 1mV to 1000V x 1mV +/- (0.8% + 4 Digits)
- AC Voltage: 0.001V to 1000V x 1mV +/- (1.5% + 5 Digits)
- Resistance: 0.1 ohms to 60 milliohms x 0.1 ohms +/- (2.0% + 5Digits)
- Frequency: 0.001Hz to 9.999kHz x 1mHz +/- (1.5% + 6 Digits)
- Capacitance: 0.1nF to 99.99mF x 0.1nF +/- (4% + 6 Digits)
- Temperature: K-Type Probe: -20 to 1000 C x 0.1 C +/- (3 C + 3 Digits)
- IR Temperature: D:S 4:1, -30.0 to 350.0 C x 0.1 C +/- (2 C + 2 Digits)
- Duty Cycle: 20.0% to 80.0% x 0.1% +/- (1.2% + 5 Digits)
- True RMS Measurements: ACV, ACA
- AC Bandwidth: 50 to 1000Hz
- Digital Display: 6000
- Bargraph: Yes
- Bluetooth: Yes
- Non-Contact Voltage (NCV): Yes
- Overrange indication: Yes
- Continuity: Yes
- Diode test: Yes
- Jaw size: 33mm
- Input impedance: greater than 10 milliohms DCV and greater than 10 milliohms VAC
- Min Max: Yes
- Data Hold: Yes
- Back Light: Yes
- Enclosure: Double injection moulding
- Low battery indication: Yes
- Power source: 3 x LR03
- Weight: 350g
- Dimensions: 239 x 66 x 44mm
