Calex Handheld Temperature Data Logger with Touch Screen

ORDER ME IN
Product code: EXCELOG-6

Backorder Now, once ordered your item will dispatch before the 11th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

Handheld temperature data logger with 4 thermocouple inputs and 2 RTD inputs. Display and log all 6 channels simultaneously or individually Data logging to SD Card, or PC via USB interface. Powered by built-in battery. Touch screen with backlight

Read more

$959.60 AUD + GST
 $1,055.56 AUD Inc. GST
Datalogger features:
- 4 x thermocouple inputs and 2 x RTD inputs
- Display and log all 6 channels simultaneously or individually
- Data logging to SD Card, or PC via USB interface
- Powered by built-in battery, USB or mains adapter (included)

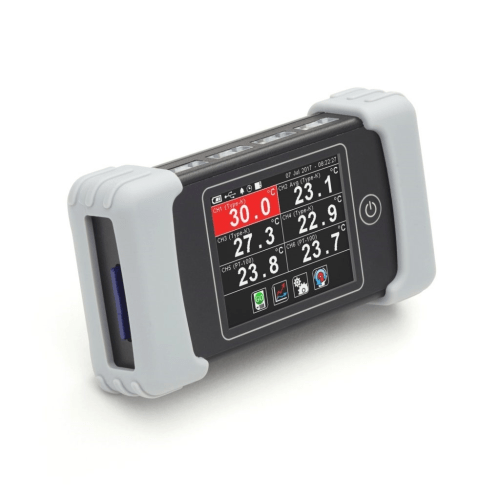

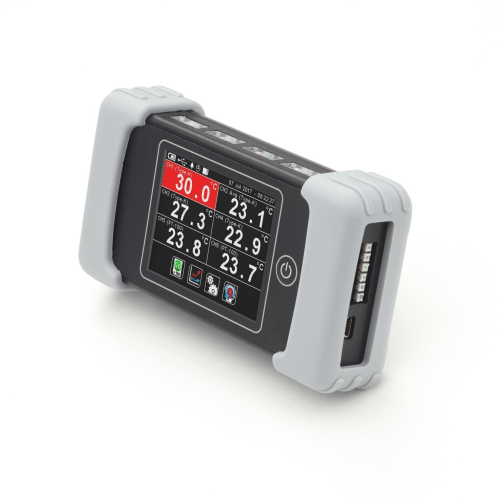

- Touch screen with backlight

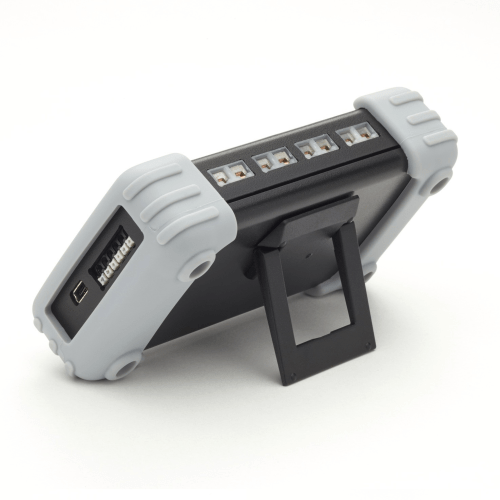

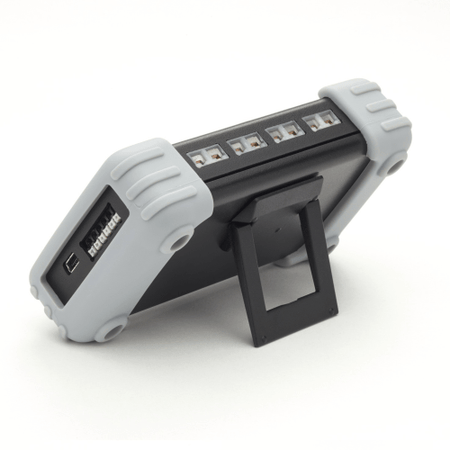

- Built-in stand
- Free software available; Modbus protocol allows use with third-party software
- 2-channel scrolling temperature chart
- Alarm indication for each channel
Interface features:
- Intuitive touch screen interface
- English, Spanish, French, German, Italian, Chinese and Japanese languages
- Fully configurable; no additional hardware is required for configuration
- Each channel is configurable separately for input type, maths, alarms and display options
- Firmware updates via USB

Specifications

- Inputs: 4 x thermocouple inputs (any of the below types), for use with miniature thermocouple connectors, plus: 2 x RTD inputs, spring clamp, for 2-wire or 3-wire RTDs, 28 to 16 AWG Accuracy (thermocouple inputs) +/- 0.1% or 0.8C, whichever is greater (Excelog only) Accuracy (RTD inputs) +/- 1.0% or 1.0
- Temperature range (thermocouple inputs): Type J: -200 to 1200 C; Type K: -200 to 1372 C; Type T: -200 to 400 C; Type R: 0 to 1768 C; Type S: 0 to 1768 C; Type N: 0 to 1300 C; Type E: -200 to 1000 C
- Temperature range (RTD inputs): Pt100, Pt200, Pt500, Pt1000: -200 to 850 C
- Temperature resolution: 0.1 for temperatures below 1000 C, 1 C for temperatures above 1000 C
- Display: 72 mm resistive touch TFT, 320 x 240 pixels, backlit
- Configurable parameters: Temperature units, alarms, signal processing, date and time, data logging, power options, graph channels
- Temperature units: F or C
- Alarm conguration: 12 x visual alarms (2 per channel) with adjustable level, individually congurable as HI or LO.
- Signal Processing: Average, minimum, maximum, standard deviation, temperature dierence between 2 channels
- Display response time: Temperatures update every 1 s
- Operating temperature: 0 to 50 C
- Power supply: Built-in rechargeable Li-ion battery, or USB, or 5 V DC mains adapter (included)
- Battery life (typical): 32 hours while logging with full display brightness up to 96 hours while logging in power saving mode
- Charge time: 6 hours (with supplied mains adapter)
- Weight: 200 g
- Dimensions: 136(w) x 71(h) x 32(d) mm
- Data Logging Interval: 1 to 86,400 seconds (1 day)
- Max. SD Card Capacity: 32 GB SD or SDHC (4 GB SD Card included - approx 2 years of data)
- Variables Logged: Measured temperature, cold junction temperature, alarm events
- File Format: *.csv (can be imported to Excel)
- Configurable Parameters: Sample period, number of samples, scheduled start date/time (or manual start/stop)
