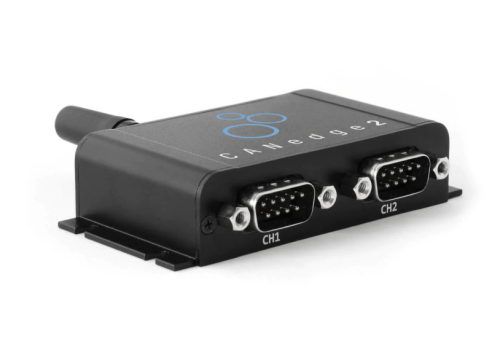

CANEDGE 2: 2x CAN BUS Data Logger with WiFi
Backorder Now, once ordered your item will dispatch before the 02nd of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).
$1,055.34 AUD Inc. GST
The plug & play 2x CAN/LIN logger records timestamped CAN data (Classical/CAN FD) to the extractable 8 GB industrial SD card.
The compact device connects via WiFi access points to securely push data to your own server - with support for over-the-air updates.
Ideal for telematics, R&D field tests, diagnostics and predictive maintenance. Software/APIs are free & open source - with no subscription fees or vendor lock-in.
2 Year Warranty (1 Year Manufacturer Warranty + Bonus 1 Year Instrument Choice Warranty)
CANEdge-2 Features
- Plug and play: Log data out-the-box. Standalone. Link your CAN bus to your server in less than 2 mins
- Pro specs: Extractable 8-32 GB SD. 2xCAN/LIN. CAN FD. Zero data loss. 50 s RTC. Error frames. MF4
- Compact: Only 8 x 5 x 2 CM. 100G. Aluminium enclosure. 5 LEDs. Configurable 5V power out (CH2)
- Manage Fleet: Easily update config/FW over-the-air across entire fleet. Auto-sync RTC via WiFi
- Secure WiFi: Push data via WiFi access points to your own server. Enterprise grade security
- Interoperable: Free & open source software/API. MF4 to ASC/CSV. DBC support. Python. Dashboards
Specifications
|
CAN BUS Channels
|
2 x CAN channels (incl. CAN FD support)
|
|
Standard
|
ISO 11898: Compliant with CAN (up to 1 Mbit/s) and ISO & Bosch CAN FD (up to 4 Mbit/s payload rate)
|
|
Protocols
|
Log raw data fromCANbased protocols (J1939/FMS,CANopen,NMEA 2000,OBD2,CAN FD,UDS, ...)
|
|
Identifiers
|
Compliant with CAN specifications 2.0A (11-Bit ID) and 2.0B (29-Bit ID)
|
|
Bit-Rate Auto-Detect
|
Bit rate can be auto-detected or set manually
|
|
Retransmission
|
Configurable retransmission of frames that have lost arbitration or been disturbed by errors
|
|
Transceiver Protection
|
16 kV HBM ESD, 15 kV IEC ESD, 70 V bus fault, short circuit
|
|
LIN BUS Channels
|
2 x LIN channels
|
|
Publisher/Subscriber
|
Each LIN channel can be configured as a LIN subscriber/publisher with support for LIN data transmission
|
|
Custom length
|
Support for custom frame lengths
|
|
Standard
|
Compliant withLIN 2.0up to 20 Kbit/s (support for Classic & Enhanced checksum format)
|
|
Transceiver Protection
|
8 kV HBM ESD, 1.5 kV CDM, 58 V bus fault
|
|
SD Card
|
8 GB extractable Class 10 industrial micro SD (SDHC) included (optional 32GB) - read at 80 MB/s
|
|
Parallel CAN/LIN
|
Record data from up to 2 x CAN channels + 2 x LIN channels, simultaneously
|
|
Real-Time Clock
|
Yes - CAN frames are date & timestamped with 50 microsecond resolution (battery backup)
|
|
Log File Format
|
Log data in industry standard binaryMF4(easily convert to e.g. CSV, ASC, pandas, MATLAB, ...)
|
|
Data Compression
|
Configurable embedded log file zipping (~50-80% size reduction)
|
|
Silent Mode
|
Configurable silent mode: Restricted (acknowledge only) or monitoring (zero transmission)
|
|
Filters
|
128/64 regular/extended ID filters per channel (range, mask, acceptance, rejection, prescaling)
|
|
Prescaling
|
Prescale CAN frames to record e.g. by time (per X ms) or by data (e.g. if byte X or Y changes)
|
|
Transmit
|
Transmit lists of CAN frames per channel (single-shot/periodic) - e.g. for OBD2 requests
|
|
CAN Error Frames
|
Support for logging CAN error frames (bit-stuffing, form, CRC, bit, acknowledgement)
|
|
LIN Error Frames
|
Support for logging LIN error frames (checksum, receive, synchronization, transmission)
|
|
Remote Frames (RTR)
|
Support for logging/transmission of remote CAN frames (RTR)
|
|
Cyclic Logging
|
Optional cyclic logging mode (oldest log file is deleted when SD card is full)
|
|
Advanced Triggers
|
Control signallets you start/stop logging based on custom CAN IDs & data thresholds
|
|
CAN Heartbeat
|
Optionally transmit heartbeat CAN frame with device status, storage used & RTC time
|
|
File Split
|
Configurable log file split size (by size: 1-512 MB and/or by time period: 0-86400s)
|
|
Power Safe
|
100% power safe data logging - no file corruption when disconnected
|
|
Unique Device ID
|
Each device has a globally unique ID ensuring unique log file naming
|
|
Data Encryption
|
Log files can beencryptedat rest on the SD card for security/GDPR/CCPA purposes
|
|
Transfer Modes
|
Station mode: Connects to a WiFi access point to transfer data
|
|
Protocol
|
HTTP/HTTPS: Stable andsecuretransfers - ideal for big data telematics
|
|
Access Points
|
Add 1-4 WiFi access points. Prioritized order. Condition on signal strength
|
|
Over-The-Air (OTA)
|
Configuration & firmware over-the-air (COTA/FOTA). Configurable sync rate. Optionally disable
|
|
WiFi Heartbeat
|
If enabled, the CANedge2 periodically "checks-in" by uploading a small device status file
|
|
Data Upload State
|
Optionally disable/enable upload of log files (e.g. via over-the-air configuration)
|
|
Range
|
Strong range via external WiFi antenna
|
|
LAN Standard
|
IEEE 802.11 b / g / n
|
|
Frequency
|
2.412-2.472 MHz (power output of 18.5dBm, 802.11b 11Mbps)
|
|
Antenna
|
External (SMA, <2 dBi gain). Can be extended or replaced by e.g. aWiFi rooftop antenna
|
|
Server Interface
|
Popular S3 REST interface - plug & play withMinIO(open source), AWS, Google Cloud, ...
|
|
HTTPS
|
Data & over-the-air updates can be sent via HTTPS (TLS 1.2) forsecure transfer
|
|
WPA/WPA2
|
Supports WPA/WPA2
|
|
Credential Encryption
|
WiFi access point & S3 server credentials can beencryptedin the config on the device SD card
|
|
Signed Firmware
|
Firmware updates aredigitally signedto verify that they are from a trusted source
|
|
User Policies
|
Fully customize access rights across CANedge devices and end users through S3 policies
|
|
Enclosure & Weight
|
Compact aluminium enclosure: 75 x 47 x 20 mm (W x L x H excl. flanges & antenna connector). 100 grams
|
|
Antennas
|
WiFi antennaincluded
|
|
Flanges
|
Flanges with 4 x M3 screw holes (head diameter < 6 mm) - see also the CANedge 'mounting kit'
|
|
Connector
|
2 x Standard D-sub 9 (DB9) connectors (optional OBD2/J1939/... adapters)
|
|
Pin-Out
|
See the product manual for the DB9 connector pin-outs
|
|
Configurable Power Out
|
Channel 2 can be configured to supply 5V to external modules (e.g. the CANmodsensor-to-CANmodules)
|
|
LEDs
|
Logger status via 5 external LEDs: Power, CH1, CH2, Memory, WiFi
|
|
Temperature
|
Operating temperature (parts): -25degC to +70degC
|
|
IP Rating
|
IP Rating 40
|
