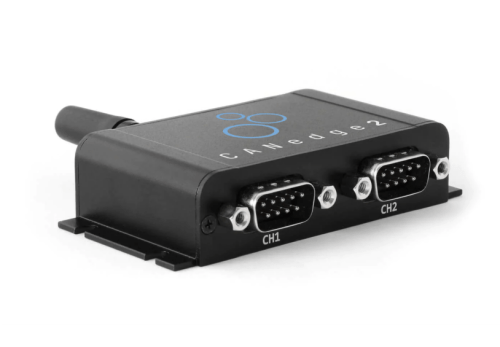

CANEDGE 2: 2x CAN BUS Data Logger with WiFi (32 GB)
Backorder Now, once ordered your item will dispatch before the 16th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).
The plug & play 2xCAN/LIN logger records timestamped CAN data (Classical/CAN FD) to the extractable 32 GB industrial SD card. The small device connects via WiFi access points (e.g. WLAN or 3G/4G routers) to securely push data to your server. Further, global fleets can easily be managed via over-the-air firmware & config updates.
$1,208.90 AUD Inc. GST
The plug & play 2x CAN/LIN logger records timestamped CAN data (Classical/CAN FD) to the extractable 32 GB industrial SD card.
The compact device connects via WiFi access points to securely push data to your own server - with support for over-the-air updates.
Ideal for telematics, R&D field tests, diagnostics and predictive maintenance. Software/APIs are free & open source - with no subscription fees or vendor lock-in.
2 Year Warranty (1 Year Manufacturer Warranty + Bonus 1 Year Instrument Choice Warranty)
CANEdge-2 Features
- Plug and play: Log data out-the-box. Standalone. Link your CAN bus to your server in less than 2 mins
- Pro specs: Extractable 32 GB SD. 2xCAN/LIN. CAN FD. Zero data loss. 50 s RTC. Error frames. MF4
- Compact: Only 8 x 5 x 2 CM. 100G. Aluminium enclosure. 5 LEDs. Configurable 5V power out (CH2)
- Manage Fleet: Easily update config/FW over-the-air across entire fleet. Auto-sync RTC via WiFi
- Secure WiFi: Push data via WiFi access points to your own server. Enterprise grade security
- Interoperable: Free & open source software/API. MF4 to ASC/CSV. DBC support. Python. Dashboards
Specifications
|
CAN BUS Channels
|
2 x CAN channels (incl. CAN FD support)
|
|
Standard
|
ISO 11898: Compliant with CAN (up to 1 Mbit/s) and ISO & Bosch CAN FD (up to 4 Mbit/s payload rate)
|
|
Protocols
|
Log raw data fromCANbased protocols (J1939/FMS,CANopen,NMEA 2000,OBD2,CAN FD,UDS, ...)
|
|
Identifiers
|
Compliant with CAN specifications 2.0A (11-Bit ID) and 2.0B (29-Bit ID)
|
|
Bit-Rate Auto-Detect
|
Bit rate can be auto-detected or set manually
|
|
Retransmission
|
Configurable retransmission of frames that have lost arbitration or been disturbed by errors
|
|
Transceiver Protection
|
16 kV HBM ESD, 15 kV IEC ESD, 70 V bus fault, short circuit
|
|
LIN BUS Channels
|
2 x LIN channels
|
|
Publisher/Subscriber
|
Each LIN channel can be configured as a LIN subscriber/publisher with support for LIN data transmission
|
|
Custom length
|
Support for custom frame lengths
|
|
Standard
|
Compliant withLIN 2.0up to 20 Kbit/s (support for Classic & Enhanced checksum format)
|
|
Transceiver Protection
|
8 kV HBM ESD, 1.5 kV CDM, 58 V bus fault
|
|
SD Card
|
32 GB extractable Class 10 industrial micro SD (SDHC); reads at 80 MB/s
|
|
Parallel CAN/LIN
|
Record data from up to 2 x CAN channels + 2 x LIN channels, simultaneously
|
|
Real-Time Clock
|
Yes - CAN frames are date & timestamped with 50 microsecond resolution (battery backup)
|
|
Log File Format
|
Log data in industry standard binaryMF4(easily convert to e.g. CSV, ASC, pandas, MATLAB, ...)
|
|
Data Compression
|
Configurable embedded log file zipping (~50-80% size reduction)
|
|
Silent Mode
|
Configurable silent mode: Restricted (acknowledge only) or monitoring (zero transmission)
|
|
Filters
|
128/64 regular/extended ID filters per channel (range, mask, acceptance, rejection, prescaling)
|
|
Prescaling
|
Prescale CAN frames to record e.g. by time (per X ms) or by data (e.g. if byte X or Y changes)
|
|
Transmit
|
Transmit lists of CAN frames per channel (single-shot/periodic) - e.g. for OBD2 requests
|
|
CAN Error Frames
|
Support for logging CAN error frames (bit-stuffing, form, CRC, bit, acknowledgement)
|
|
LIN Error Frames
|
Support for logging LIN error frames (checksum, receive, synchronization, transmission)
|
|
Remote Frames (RTR)
|
Support for logging/transmission of remote CAN frames (RTR)
|
|
Cyclic Logging
|
Optional cyclic logging mode (oldest log file is deleted when SD card is full)
|
|
Advanced Triggers
|
Control signallets you start/stop logging based on custom CAN IDs & data thresholds
|
|
CAN Heartbeat
|
Optionally transmit heartbeat CAN frame with device status, storage used & RTC time
|
|
File Split
|
Configurable log file split size (by size: 1-512 MB and/or by time period: 0-86400s)
|
|
Power Safe
|
100% power safe data logging - no file corruption when disconnected
|
|
Unique Device ID
|
Each device has a globally unique ID ensuring unique log file naming
|
|
Data Encryption
|
Log files can beencryptedat rest on the SD card for security/GDPR/CCPA purposes
|
|
Transfer Modes
|
Station mode: Connects to a WiFi access point to transfer data
|
|
Protocol
|
HTTP/HTTPS: Stable andsecuretransfers - ideal for big data telematics
|
|
Access Points
|
Add 1-4 WiFi access points. Prioritized order. Condition on signal strength
|
|
Over-The-Air (OTA)
|
Configuration & firmware over-the-air (COTA/FOTA). Configurable sync rate. Optionally disable
|
|
WiFi Heartbeat
|
If enabled, the CANedge2 periodically "checks-in" by uploading a small device status file
|
|
Data Upload State
|
Optionally disable/enable upload of log files (e.g. via over-the-air configuration)
|
|
Range
|
Strong range via external WiFi antenna
|
|
LAN Standard
|
IEEE 802.11 b / g / n
|
|
Frequency
|
2.412-2.472 MHz (power output of 18.5dBm, 802.11b 11Mbps)
|
|
Antenna
|
External (SMA, <2 dBi gain). Can be extended or replaced by e.g. aWiFi rooftop antenna
|
|
Server Interface
|
Popular S3 REST interface - plug & play withMinIO(open source), AWS, Google Cloud, ...
|
|
HTTPS
|
Data & over-the-air updates can be sent via HTTPS (TLS 1.2) forsecure transfer
|
|
WPA/WPA2
|
Supports WPA/WPA2
|
|
Credential Encryption
|
WiFi access point & S3 server credentials can beencryptedin the config on the device SD card
|
|
Signed Firmware
|
Firmware updates aredigitally signedto verify that they are from a trusted source
|
|
User Policies
|
Fully customize access rights across CANedge devices and end users through S3 policies
|
|
Enclosure & Weight
|
Compact aluminium enclosure: 75 x 47 x 20 mm (W x L x H excl. flanges & antenna connector). 100 grams
|
|
Antennas
|
WiFi antennaincluded
|
|
Flanges
|
Flanges with 4 x M3 screw holes (head diameter < 6 mm) - see also the CANedge 'mounting kit'
|
|
Connector
|
2 x Standard D-sub 9 (DB9) connectors (optional OBD2/J1939/... adapters)
|
|
Pin-Out
|
See the product manual for the DB9 connector pin-outs
|
|
Configurable Power Out
|
Channel 2 can be configured to supply 5V to external modules (e.g. the CANmodsensor-to-CANmodules)
|
|
LEDs
|
Logger status via 5 external LEDs: Power, CH1, CH2, Memory, WiFi
|
|
Temperature
|
Operating temperature (parts): -25degC to +70degC
|
|
IP Rating
|
IP Rating 40
|
