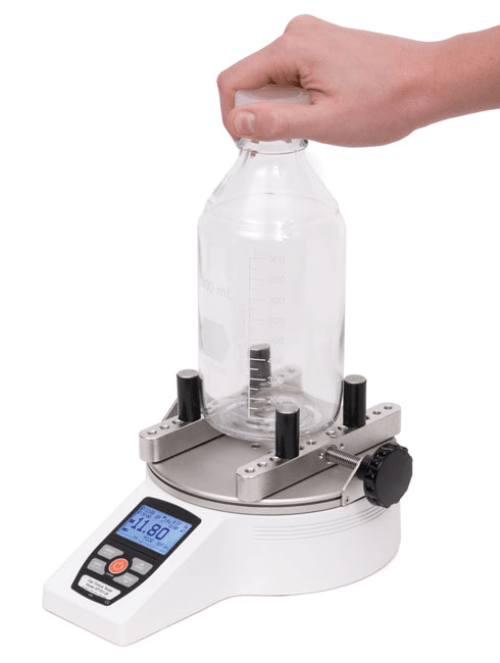

The CAP-TT01-25 accurately measures application and removal torque of bottle caps up to 25 lb-in (2.90 Nm). Supplied with adjustable pegs to effectively grip a wide range of container shapes and sizes, while optional flat and adjustable jaws are available to secure unique profiles.
The CAP-TT01-25 also has a accuracy of +/- 0.3% and a sampling rate of 7,000 Hz ensure reliable and consistent test results. Can display measurements in
Oz-in, Lb-in, Kg-cm, N-m and N-cm units.
Also includes USB, RS-232, analog outputs, software, automatic data output and zeroing, memory storage for 1,000 readings, pass/fail indicators and outputs,
and more. Password protection is provided to prevent unauthorized changes to settings and calibration.
Features:
- Moveable posts and optional jaws accommodate a wide range of sample shapes and sizes
- Automatic output, data storage, and zeroing upon bottle cap removal helps automate testing processes
- Password protection prevents unauthorized changes
- High-speed 7,000 Hz sampling rate accurately captures peak torque values
- 5 selectable units of measure including Oz-in, Lb-in, Kg-cm, N-m and N-cm
- USB, RS-232, Mitutoyo, and analog outputs
- 1,000-point data memory with statistics and outputs
- Programmable set point indicators and outputs for pass/ fail determination
- Configurable audio alarms and key tones
- MESUR Lite data collection software included
- Measures container diameters from 0.5" to 7.5" (12.7-190 mm)
- Includes NIST Traceable Calibration Cert. A long form cert with data is optionally available.
- First & second peak torque detection is useful for measuring slip and breakaway torques for tamper evident closures.
Specifications
- Range: 25 lbFin / 400 ozFin / 28 kgFcm / 290 Ncm / 2.9 Nm
- Accuracy: +/- 0.3% of Full Scale
- Sampling rate: 7,000 Hz
- Power: AC or rechargeable battery. Multi-step low battery indicator is displayed, tester shuts off automatically when power is too low.
- Battery life (Blacklight on): up to 7 hours of continuous use
- Battery life (Blacklight off): up to 24 hours of continuous use
- Measurement units: oz-in, lb-in, kg-cm, N-m, N-cm
- Configurable Settings: Digital filters, outputs, automatic output/data storage/zero, automatic shutoff, default settings, key tones, backlight, audio
alarms, passwords, calibration
- Safe overload: 150% of full scale (display shows "OVER" at 110% and above)
- Included items: Universal voltage AC adapter, battery, quick-start guide, USB cable, resource CD (USB driver, MESURTM Lite software, MESURTMgauge DEMO
software, and user's guide), and NIST-traceable certificate of calibration with data.
- Warranty: 3 years (see individual statement for further details)
- Container Diameter: 12.7-190 mm (0.5 to 7.5 in)
Outputs:
- USB/RS-232: Configurable up to 115,200 baud.
- Mitutoyo: Serial BCD suitable for all Mitutoyo SPC-compatible devices.
- Analog: +/- 1V DC, 0.25% of full scale at capacity.
- General
Warranty:
- 3 Years Manufacturer Warranty + Additional 1 Year Instrument Choice Warranty
