CAT-MT Anemometer Kit with RS485 Ultrasonic Anemometer - IC-ORB-X1-G-HY WDC2E

ORDER ME IN
Product code: IC-ORB-X1-G-HY-WDC2E

Backorder Now, once ordered your item will dispatch before the 06th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

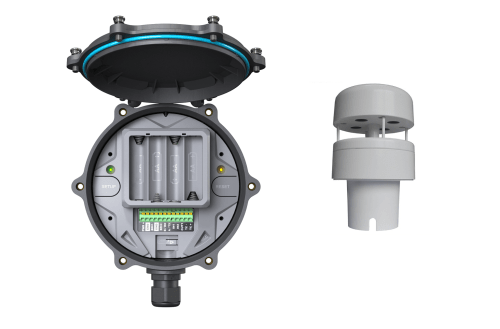

This kit includes the ORB-X1 CAT-M1 GSM Interface along with a Ultrasonic 2D Anemometer. It is ideal for remote crane monitoring for delivering data to see on a portal from anywhere in the world.

Read more

$2,098.00 AUD + GST
 $2,307.80 AUD Inc. GST

ORB-X1 (GSM)

The ORB-X1-G with GPS has sensors to allow the measurement of voltage, current, position, speed, tilt, temperature, pressure, frequency, and serial data. Data measured by the ORB-X1-G is transmitted via GSM and can be delivered to the Senquip Portal or to your own server.

Features:

- Multi-sensors: Measure voltage, current, position, speed, tilt, temperature, pressure, frequency, serial data and more.
- WIFI and GSM: CAT-M1 GSM ensures best possible coverage and least possible power. WiFi connectivity allows for connection to local networks.
- Multiple protocols: SMS, UDP, MQTT, TCP and more.
- Secure data: Embedded certificates and secure communications.
- Notifications: Configurable levels for each notification
- Adaptable: Users write their own scripts.
- Versatile mounting: Ships with pole and wall mount options.
- Built tough: Designed for use in harsh industrial environments.
- Simple setup: Use any phone, tablet, or laptop with the integrated web server.
- Cloud services: Access to the Senquip Portal for viewing of data, storage, remote setup and firmware upgrades
- Integrated light sensor - Used to activate the ORB setup functions when the lid is opened and to detect tamper attempts. The light sensor is sampled on a regular basis and does not have an associated measurement interval.

Internal sensor specifications

Accelerometer:

- G-force range: +/- 16G
- Resolution: 1mG
- Sensitivity change vs temperature: 0.1% per C
- Typical zero-g level offset accuracy: +/- 40mG
- Tilt resolution: 0.1 deg
- Tilt accuracy (0-45 deg): 1.0 deg
- Tilt accuracy (45-90 deg): 2.0 deg

Pressure Sensor:

- Pressure range: 300 - 1100 hPa
- Temperature range: -40 to 85 C
- Absolute accuracy (0 to 65 deg C): +/-1 hPa
- Relative accuracy (25 to 40 deg C): +/-0.12 hPa, equivalent to +-1 m altitude
- Absolute maximum pressure: 20,000 hPa

Temperature sensor:

- Measurement range: -40 to 85 C
- Resolution: 0.01 deg C
- Absolute accuracy (25 C): +/-0.5 deg C
- Absolute accuracy (0 - 65 C): +/-1 deg C

GPS:

- Time to first fix from power up: Typically 60 seconds
- Position update rate: Maximum 1Hz
- Horizontal position accuracy: Typically +-5m
- Vertical position accuracy: Typically +-20m
- Horizontal speed accuracy: 1km/h

HY-WDC2E

HY-WDC2E Ultrasonic 2D Anemometer is designed to simultaneously measure the 2-dimensional horizontal components of the wind speed and direction based on principle of TOF(time of flight) of ultrasonic sound wave. Low power chip make its power consumption low to 0.2W. By using ABS shell allows a lighter weight is lighter and more stable structure.
Features:

- Extremely low power consumption (0.2W), suitable for solar-powered weather stations
- No moving or wearing parts
- Low power design supports battery-operated data loggers.
- Using engineering plastic or aluminum alloy shell make it lighter

Specifications



Wind speed:

- Range: 0 - 40m/s
- Accuracy: +/- 5%
- Resolution: 0.1 m/s

Wind direction:

- Range: 0 to 359 degrees
- Accuracy: +/- 3 degrees
- Resolution: 1

Sensor:

- Digital output: RS485, RS232, SDI-12
- Baud Rate: 4800-19200
- Communication protocol: ModBus-RTU?NMEA-0183?ASCII - Protection Grade: IP65
- Operating Temperature: -40 C to +60 C Operating Humidity
- Operating humidity: 0-100%
- Operating Voltage: 3-30VDC; 18mA at 12V
- Dimension/Weight: ABS: 82 x 108mm, 0.28kg, Aluminum alloy, 82 x 125mm, 0.38kg
- Color of Body: Black or White - Material: ABS or aluminum alloy
