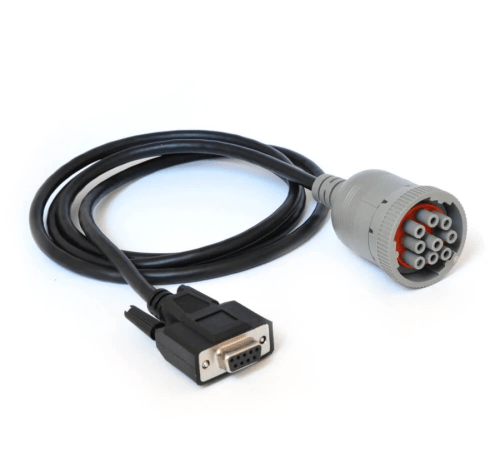

CAT-to-DB9 Adapter Cable (Deutsch 9-Pin, Caterpillar)
This 1.5 meter CAT-to-DB9 deutsch 9-pin adapter fits most Caterpillar heavy duty vehicles and lets you easily connect your CANedge/CLX000 CAN logger to start recording J1939 data.
Regular price
$89.10 AUD
+ GST
$98.01 AUD Inc. GST
$98.01 AUD Inc. GST
The CAT-to-DB9 adapter cable is suited for use in most Caterpillar heavy duty vehicles - incl. trucks, transit buses, excavators, construction machinery and more. The cable lets you connect your CANedge/CLX000 CAN logger directly to the CAN bus.
Simply locate the 9-pin deutsch connector in your CAT vehicle, typically found in the cabin (sometimes behind a panel).
Features:
- Heavy Duty: Fits most CAT trucks, buses & other heavy duty vehicles
- Standard DB9: Fits our CAN loggers & all adapters (CiA 303-1 DB9 pinouts)
- Over molded: Quality overmold ensures top flexibility & durability
- Solid Cables: Rugged quality 1.5m cable with 22 AWG (0.5 mm2) thickness
- Direct: Enable direct access to Caterpillar CAN buses
Specifications
- Adapter Cable Length: 150 cm
- Adapter DB9 Pins: In accordance with CiA 303-1
- Compatibility: High Speed CAN Bus (ISO 11898-2) incl. e.g. CAN FD, SAE J1939, NMEA 2000
- Cable Thickness: 22 AWG (0.50 mm2)
- Connectors: 9-pin D-sub (DB9) female to CAT 9-pin deutsch (female)
- Temperature: Operating temperature: -20degC to +80degC
- Weight: 220G
