Classic Fluorometer, USB Base Entry, 50 m - IC-3003

ORDER ME IN
Product code: IC-3003
The Classic Fluorometer USB Standard 50m is designed for ease of handling, with the cable extending from the base of the sensor. The sensor is waterproof to 50m/164ft depth. In this model, the cable enters base of sensor for process applications.

Read more

The Classic Fluorometer USB Standard 50m is designed for ease of handling, with the cable extending from the base of the sensor. The sensor is waterproof to 50m/164ft depth. The sensor enables convenient measurement of wet material including aquatic plants, algae and wet leaves. The small size of the fluorometer (1.8?diameter, 2.7? long), and its 12-24V capability makes it easy to use in the field.

On commencing measurements, one establishes a suitable gain setting with a sample leaf and a zero offset value in air or water. Chlorophyll-containing samples are then simply placed over the sampling window for single or repeated measurements.

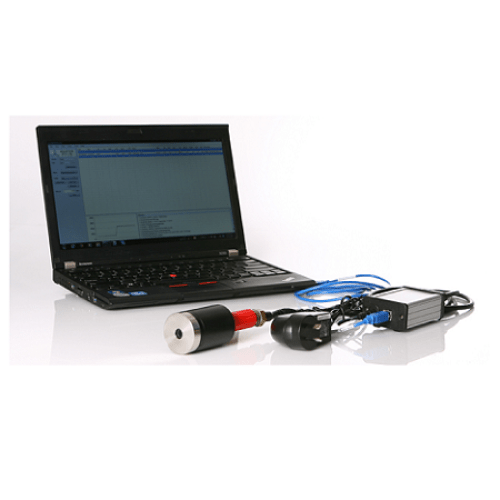

The Classic Fluorometer USB Standard 50m is designed to be operated underwater or in the field with the Submersible Datalogger. The light pipe extension and sample holder enable continuous monitoring of a leaf, coral or alga for extended intervals where the shutter is not required.
Features:
- Chlorophyll fluorometer for plant physiology and chlorophyll content studies
- Fluorescence sensor with cable located at base of unit
- Waterproof to 50m/164ft
- Measures variable fluorescence of photosystem II
- Returns Fo, Fm and Fv/Fm values
- Calculates relative chlorophyll index that correlates with chlorophyll concentration
- Measures temperature in sensor
- Flexible and uncluttered software is easy to use
- User manual and software supplied
- USB connection to PC
- Fully waterproof sensor for field applications,
- Powered from battery or mains,
- Repeated measurements are possible when attached to PC or datalogger,
- Easy-to-use software with an uncluttered interface,
- Extensive programmable capacity in software for advanced users

Specifications

- Unit of measure: relative fluorescence units
- Range: 0-4000
- Automatic ranging and autozero functions
- Relative chlorophyll index (function of gain and Fo)
- Temperature in ?C
- Light sources: 470 nm LED (excitation), white (saturation and actinic), 735 nm (far red)
- Sensor housing: acetal, stainless steel 306
- Interface enclosure: strengthened aluminium
- Maximum immersion depth of sensor: 50m/164ft depth
- Dimensions: Interface 5?x2.5?x1.2?; Sensor 1.8?diameter, 2.7? long
- Voltage: 110-240V 50-60Hz, 12-24VDC
