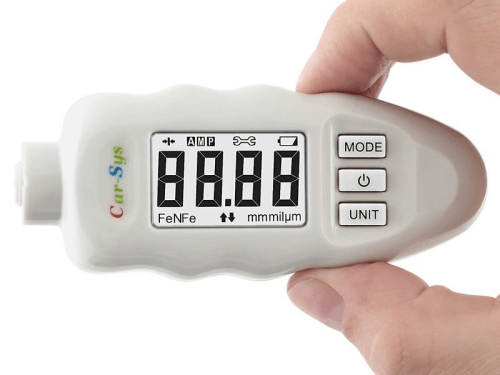

Coating Thickness Gauge LITE - IC-DPM-816 LITE
Unfortunately, the DPM-816-LITE is unavailable at this time.
|
The device is intended for coating thickness measurements using the magnetic induction method - thickness of various dielectric (paint, plastic, putty, etc.) and electrically conductive, non-magnetic coatings (aluminum, zinc, chrome, copper) on a ferrous metal base (steel, iron).
Advantages of the thickness gauge
- Accurate and stable measurements.
- Thickness measurement on ferrous and non-ferrous metal bases.
- Thickness measurement range 0-3 mm (0-3000 um).
- Automatic determination of metal base (ferrous or non-ferrous).
- Displays result in mm, m, and thousandths of an inch (mil).
- Thickness measurement on galvanized steel parts.
- Allows for custom calibration for specific metals.
- Fast user calibration using one or two points of reference.
- 5 modes of operation, for various usage conditions.
- Backlit display for measuring thickness in poor lighting.
- Automatic detection when the measurement starts.
- Registered trademark and patent.
- One-year warranty
Fields of application:
- Automotive, Industrial, Construction.
- Process control of application of paint or other protective coatings in service centers and in manufacturing: machine tools and mechanisms,
metal structures, automobile, etc.
- Car body diagnostics: when buying a car, before repairing dents without paint, scratch removal, professional polishing, car assessment
in the insurance field, painting under the thickness gauge, etc.
- Non-destructive thickness control of anticorrosive coatings: Ships, metal parts of bridges, overpasses, cranes, etc.
Specifications- Measurement range (um): 0 to 2000 um (0 to 2 mm)
- Measurement range (mil): 0 to 78 mil
- Measurement precision: 1 um / 0.01 mm / 0.1 mil.
- Permissible error (0 to 699 um): +/- 3% + 1 um.
- Permissible error (700 to 3000 m): +/- 3% + 10 um.
- Operating temperature (humidity not higher than 70%): from -25 to 40 C
- Power supplied by 1 AAA battery, 1.5 V (not included)
- Measurement units: um/mm/mil.
- Measurement duration: 0.5 to 1 sec.
- Display size: 20 x 33 mm.
- Net weight (without battery): 50 g.
- Manufactured in Russia.
- Warranty: 3 years.
