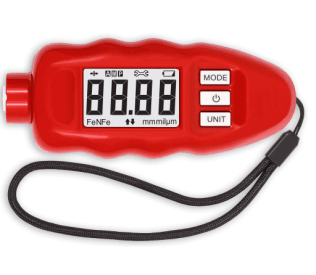

Coating Thickness Gauge PRO - IC-DPM-816-PRO-RED

DISCONTINUED
Product code: IC-DPM-816-PRO-RED

Unfortunately, the DPM-816 is unavailable at this time.

Thickness coating meter for any non-metallic coating applied on a metal base. Can be used in checking paint thickness in cars when making repairs, measuring the thickness of of fireproof or protective coatings and on making dent repairs on the car body.

Read more

The device is intended for coating thickness measurements using the magnetic induction method - thickness of various dielectric (paint, plastic, putty, etc.) and electrically conductive, non-magnetic coatings (aluminum, zinc, chrome, copper) on a ferrous metal base (steel, iron).


Advantages of the thickness gauge:

- Accurate and stable measurements.
- Thickness measurement on ferrous and non-ferrous metal bases.
- Thickness measurement range 0-3 mm (0-3000 m).
- Automatic determination of metal base (ferrous or non-ferrous).
- Displays result in mm, m, and thousandths of an inch (mil).
- Thickness measurement on galvanized steel parts.
- Allows for custom calibration for specific metals.
- Fast user calibration using one or two points of reference.
- 5 modes of operation, for various usage conditions.
- Backlit display for measuring thickness in poor lighting.
- Automatic detection when the measurement starts.
- Registered trademark and patent.
- Three-year warranty
- Available in Black, Red or White colors

Fields of application:

- Automotive, Industrial, Construction.
- Process control of application of paint or other protective coatings in service centers and in manufacturing: machine tools and mechanisms, metal structures, automobile, etc.
- Car body diagnostics: when buying a car, before repairing dents without paint, scratch removal, professional polishing, car assessment in the insurance field, painting under the thickness gauge, etc.
- Non-destructive thickness control of anti-corrosive coatings: Ships, metal parts of bridges, overpasses, cranes, etc.

Specifications

:

- Measurement range (um): 0 to 3000 um (0 to 3 mm)
- Measurement range (mil): 0 to 118 mil
- Measurement precision: 1 um / 0.01 mm / 0.1 mil.
- Permissible error (0 to 699 um): +/- 1% + 1 um.
- Permissible error (700 to 3000 m): +/- 1% + 10 um.
- Operating temperature (humidity not higher than 70%): from -25 to 40 C
- Power supplied by 1 AAA battery, 1.5 V (not included)
- Measurement units: um/mm/mil.
- Measurement duration: 0.5 to 1 sec.
- Display size: 20 x 33 mm.
- Net weight (without battery): 50 g.
- Manufactured in Russia.
- Warranty: 3 years.

Warranty

- 3 Years Manufacturer Warranty + Additional 1 Year Instrument Choice Warranty
