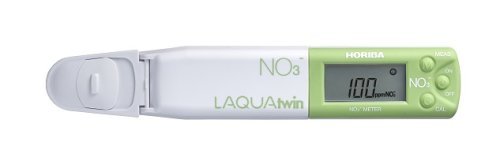

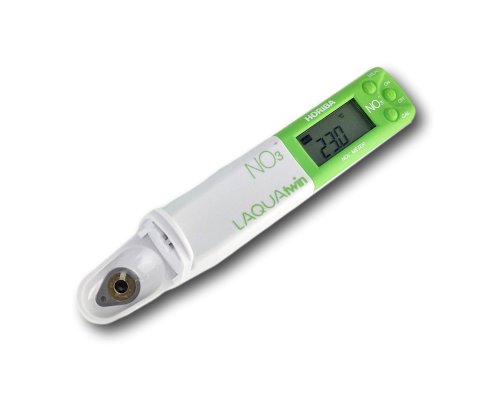

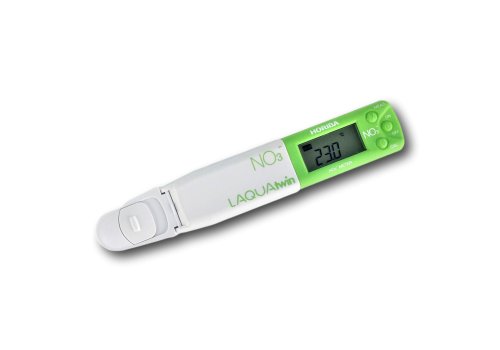

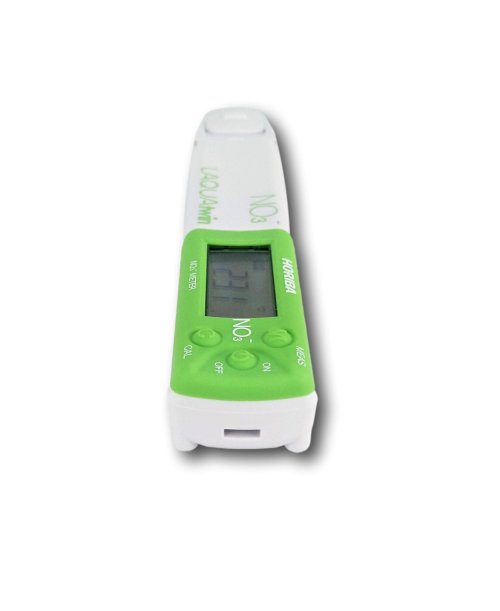

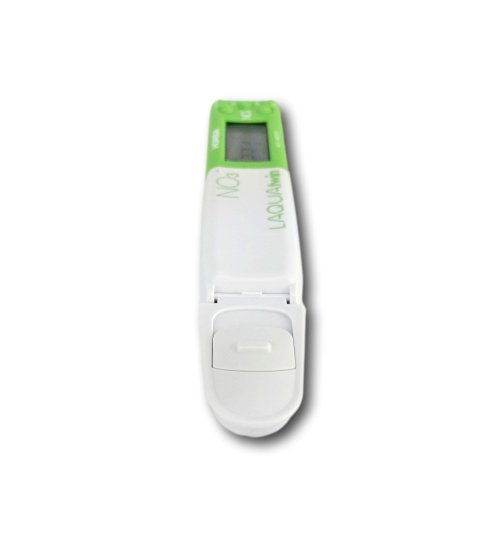

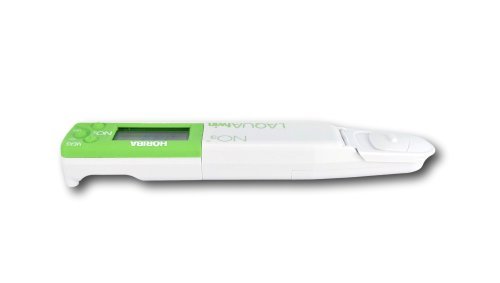

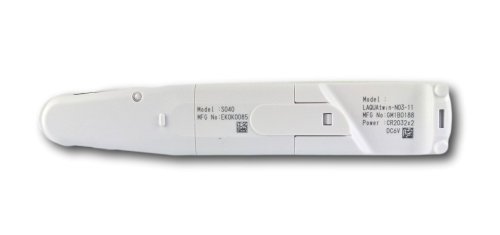

Compact meter for a quick measurement of nitrate ion using ion selective membrane. Flat sensor technology and 60 years of sensor engineering realizes a reliable and direct measurement of a drop of the sample from 0.3mL.
Use sampling sheet (sold separately) to measure down to 0.05mL or more.

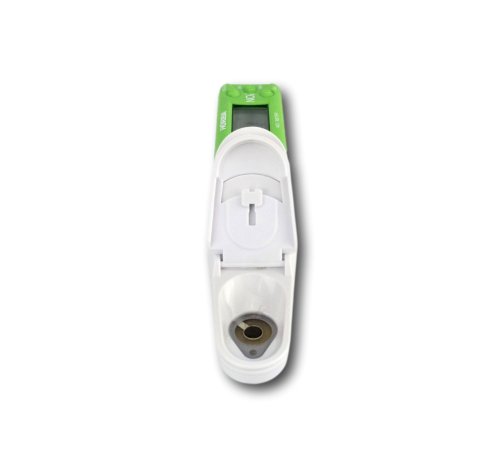

Unique sensor mechanism realizes direct measurement of solid, viscous, powder samples. No need for a beaker to calibrate or measure. Just drop the standards and sample on the flat sensor, saves you time and minimize wasting your precious sample. This lightweight, pocket-sized meter is suitable for research and industrial applications in diverse fields.
Applications include:
Soil and sap testing for improved agriculture; food testing*
* Detection of ions in water only; electrolytes in oils cannot be measured. Ion measurement can be affected by non-target ions.
Functions
Autocalibration function recognizes standards and is user-selectable for either one- or two-point calibrations.
Auto range change
Temperature compensation
IP67 waterproof
Auto hold
Automatic power off: 30 minutes
Specifications
|
MODEL |
NO3-11 |
|---|---|
|
Measurement principle |
Ion Selective Electrode |
|
Minimum |
0.3 ml (0.05 ml with Sampling Sheet B) |
|
Measurement range |
NO3-: 6 to 9900 ppm (mg/L), (0.1 to 160 mmol/L) NO3-N: 1.4 to 2200 ppm (mg/L) |
|
Resolution |
0 to 99 ppm: 1 ppm 100 to 990 ppm: 10 ppm 1000 to 9900 ppm: 100 ppm |
|
Accuracy |
+- 10% of actual value |
|
Maximum calibration points |
2 |
|
Temperature display/resolution |
0 to 50.0 C / 0.1 C
|
|
Functions |
Automatic Standard Recognition ? Changeable Low and High Calibration Values ? Temperature Compensation ? Temperature Calibration ? Multiplication Compensation (0.01 to 9.90) ? Auto Hold / Auto Stable ? Automatic Power Off (30 mins.) ? Low Battery Indicator ? IP67 Water / Dust Proof ? Replaceable Sensor |
|
Display |
Custom (Monochrome) Digital LCD with Backlight |
|
Battery life
|
Approx. 400 hrs. continuous use without backlight |
|
Material
|
ABS epoxy body / flat glass sensor |
|
Includes accessories |

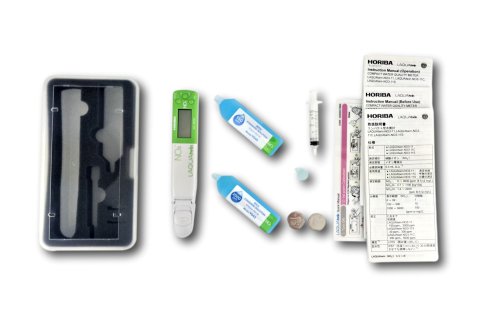

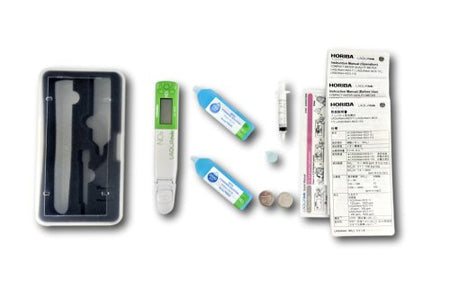

150 & 2000 ppm Standard Solutions (14 ml each) ? Sampling Sheet B (5pcs) CR2032 Batteries (2) ? Dropper ? Instruction & Quick Manuals ? Storage Case |
*1 Smaller amount(0.05mL or more) can be measured with the sampling sheet B. (Please close the light shield cover. If a sample that contain particulate, please use ?Sampling sheet holder? (sold separately))
*2 With soil/water sampling ratio of 1:5.
*3 When the measured value is out of the measurement range, the displayed value blinks. It should be used only as a guide.
*4 Selectable between one-point and two-point calibrations.
*5 Repeatability in measurement of a standard solution after calibration using the same standard solution.
The ion electrode may be subject to interference from other ionic species. The selectivity coefficient reflects the affinity between each ionic species and the electrode, and is used to correct for the influence of competing ions. Please see the Interfering ion influence ? pH range for further details.
