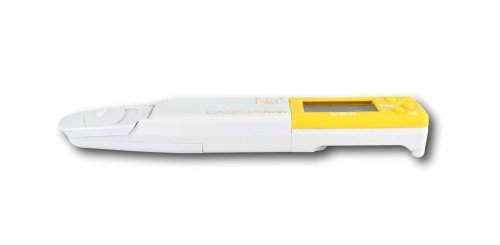

Compact meter for a quick measurement of sodium ion using ion selective membrane.Flat sensor technology and 60 years of sensor engineering realizes a reliable and direct measurement of a drop of the sample from 0.3mL. Use sampling sheet (sold separately) to measure down to 0.05mL or more.
Unique sensor mechanism realizes direct measurement of solid, viscous, powder samples. No need for a beaker to calibrate or measure. Just drop the standards and sample on the flat sensor, saves you time and minimize wasting your precious sample.This lightweight, pocket-sized meter is suitable for research and industrial applications in diverse fields.
Applications include:
Soil and sap testing for improved agriculture; food testing*
* Detection of ions in water only; electrolytes in oils cannot be measured. Ion measurement can be affected by non-target ions.
Functions
Autocalibration function recognizes standards and is user-selectable for either one- or two-point calibrations.
Auto range change
Temperature compensation
IP67 waterproof
Auto hold
Automatic power off: 30 minutes)
|
MODEL |
Na-11
|
|---|---|
|
Measurement principle |
Ion electrode method |
|
Minimum |
0.3mL or more 1 |
|
Measurement range Display range
|
0 to 9900 ppm(mg/L) 2 |
|
Range and Resolution (Valid numbers)
|
0 to 99 ppm: 1 ppm 100 to 990 ppm: 10 ppm 1000 to 9900 ppm: 100 ppm |
|
Calibration
|
Two-point 3 |
|
Accuracy |
+/-10% of reading value. 4 |
|
Functions |
Auto range change, Temperature compensation, Waterproof 5, Reading locking , Automatic power off , 30 minutes |
|
Display |
Custom (monochrome) Digital LCD with back-light |
|
Operating |
5 to 40 C, 85% or less in relative humidity (no condensation) |
|
Power |
CR2032 batteries (x2) |
|
Battery life |
Approx. 400 hours in continuous use |
|
Outer dimensions |
164 mm x 29 mm x 20 mm (excluding projections)/ Approx. 50 g (meter only, without batteries) |
|

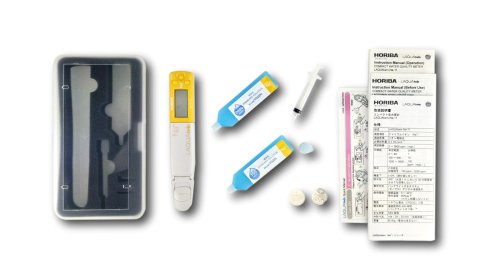

Accessories |
2 CR2032 batteries/1 Pipette/Instruction manual/Quick manual/Storage case/Standard solution |
*1 Smaller amount(0.05mL or more) can be measured with the sampling sheet B. (Please close the light shield cover. If a sample that contain particulate, please use ?Sampling sheet holder? (sold separately))
*2 When the measured value is out of the measurement range, the displayed value blinks. It should be used only as a guide.
*3 Selectable between one-point and two-point calibrations.
*4 Repeatability in measurement of a standard solution after calibration using the same standard solution.
*5 IP67 no failure when immersed in water at a depth of 1 meter for 30 minutes. But the product can not be used underwater.
