Creator PRO RTL8711AM (WISCREATOR-473MA) Realtek Ameba WiFi Module
Backorder Now, once ordered your item will dispatch before the 11th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

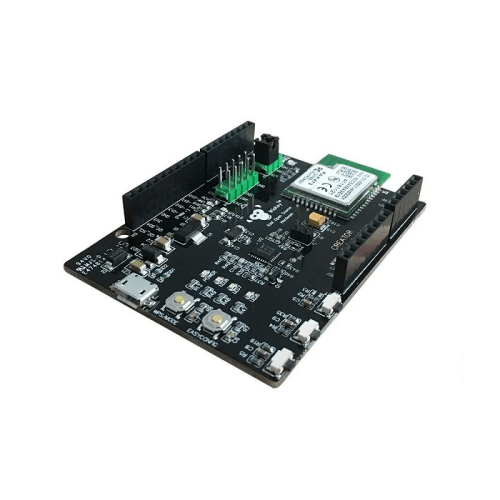

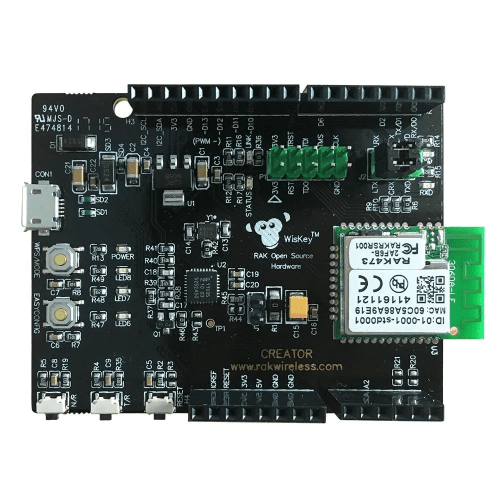

Creator Pro is a convenient development kit for makers. It includes RTL8711AM chip and integrated programming tools. Creator Pro is Arduino compatible. Integrated high-performance CPU, Wi-Fi, Ethernet, and a wealth of peripherals, Standard Arduino Library, as an excellent single-chip networking solution, you can easily implement your IoT prototype.
Regular price
$18.00 AUD
+ GST
$19.80 AUD Inc. GST
$19.80 AUD Inc. GST
Features:
- To achieve IoT application development, with a variety of peripheral interface WiFi, GPIO, I2C, UART, PWM, ADC;
- Compatible with Arduino, powered by Micro USB; Support Win XP/7/8 32 & 64 bit, MAC OS operating system;
- Support Win XP/7/8 32 & 64 bit, MAC OS operating system;
- Using RTL8711AM chip, integrated internal memory and flash memory, 1MB ROM,2MB SDRAM and 512KB SRAM;
- Supports NFC tags with reading and write functions
Unit characteristics:
- 2 UART Interfaces including 1 HS-UART and one log UART
- 3 I2C Interfaces and support both master and slave mode
- 1 I2S/PCM Interfaces and support both master and slave mode
- 4 PWM interfaces
- 1 ADC interfaces
- 1 DAC interfaces
Specifications
- CPU: 32-bit ARM Cortex M3, up to 166MHz
- Memory: 1MB ROM, 2MB SDRAM, and 512KB SRAM/Integrated with 802.11 b/g/n 1x1 Wi-Fi
- NFC Tag with Reading/Write Function
- Hardware SSL engine
- Maximum 19 GPIOs
