Definitive Dialysate Testing

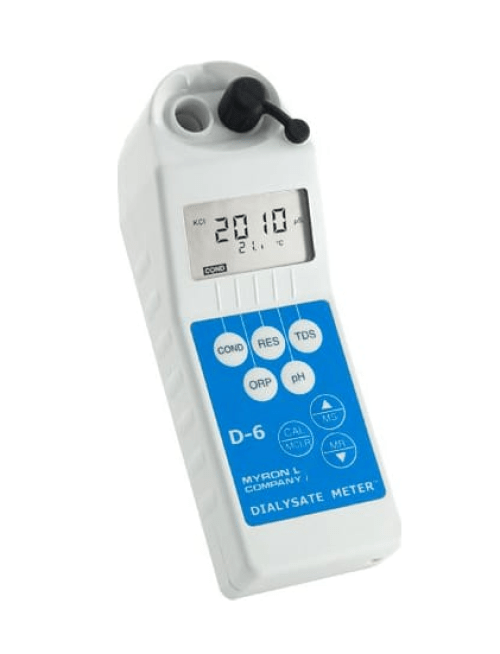

The digital dialysate meter is specifically designed to test both acetate and bicarbonate dialysate quality. Measure Conductivity, pH and Temperature to ensure proper mixing during dialysate preparation and as a final check of dialysate quality before hemodialysis treatment. There are no strips or reagents that expire or subjective interpretation of results. Internal sensors require the user to place the sample in the instrument, preventing contamination of dialysate by the measurement device.
Comprehensive Water Quality Analysis for Hemodialysis
The digital dialysate meter also measures parameters critical in water quality monitoring and control at every stage of hemodialysis water treatment. Test Conductivity, Resistivity, TDS, pH, ORP, Free Chlorine and Temperature of feed and product water in unit processes. Use measurements as independent checks against automatic systems of control and to check residual levels of sanitizers in water treatment and hemodialysis systems after system maintenance.
Powerful, portable DIGITAL DIALYSATE METER features extreme accuracy in widely varying ranges, easy one-touch measurements and keypad calibration.
Applications:
- Dialysate Preparation
- Dialysate Quality Assurance
- Water Treatment for Hemodialysis
- System/Equipment Disinfection
- Wastewater Management
Specifications
- Case Material: VALOX
- Cond/Res/TDS Cell Material: VALOX
- Cond/TDS Electrodes (4): 316 Stainless Steel
- Cond/Res/TDS Cell Capacity: 5 ml/0.2 oz.
- pH/ORP Sensor Well Capacity: 1.2 ml/0.04 oz. (D-6)
- Power: 9V Alkaline Battery
- Battery Life: >100 Hours/5000 Readings
- Operating/Storage: Temperature 0-55C/32-132F
- Protection Ratings: IP67/NEMA 6 (waterproof to 1 meter/3 feet)
- Chemical Resistance: Resistant to hydrocarbons, dilute acids and bases, detergents, and aqueous salt solutions
- Water Resistance: IP67/NEMA 6 (waterproof to 1 meter/3 feet)
- EMI/RFI Ratings (Conformit Europenne): EN61326-1: 2006 + Annex A: 2008 (hand-held devices), CISPR 11: 2003, IEC 61000-4-2: 2001 and, IEC 61000-4-3: 2002
- Flammability PCB: UL 94, V.0; Case: HB/1.47 or better
