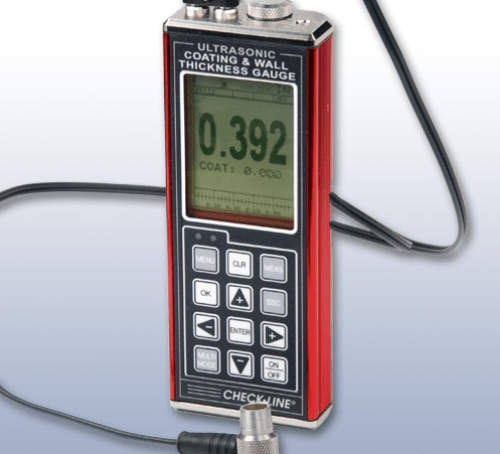

The Check-Line TI-CMXDL accurately measures coating and wall thickness on a wide range of materials. Five selectable measuring modes enable the operator to precisely measure wall thickness, coating thickness and locate corrosion and pittingwithout removing the coating.
Oversized graphic LCD is backlit and features an easy to navigate menu allowing quick access to gauge settings and options.
Operating modes:
- Coating On: Measures wall thickness using Pulse-Echo. It separately displays wall & coating thickness.
- Coating Off: Measures wall thickness using Pulse-Echo. It displays wall thickness only.
- Temperature Compensated: Measures wall thickness using Pulse-Echo and automatically adjusts calibration to compensate for changes in material temperature.
- Thru-Coat: Measures wall thickness only using Echo-Echo. (coating is NOT included)
- Coating Only Mode (CT): (Coating Thickness) Measures from 0.0005 to 0.100 inches (0.013 to 2.540 mm). Range will vary slightly depending on the coating.
Features of the TI-CMXDL Data Logger:
- Built-in memory with RS-232 output for transferring data to a Printer or PC.
- Includes Datacomm Data Transfer & Analysis Software and RS-232 Cable, FREE.
- Data Files can be user-set for a "grid type" structure where data is formatted in Rows & Columns or a "sequential" file where all data appears
in a single column.
- Each "grid type" File can be set for up to 999 rows by 52 columns.
- Each "sequential" File can be set for up to 512 rows by 1 column.
- Each File can be set for "data only" or as "data plus B-scan Graphic". Memory Capacity is over 225,000 data values or over 16,000 data values with
B-scan.
Features:
- Auto probe recognition with Auto Zero or Manual Zero.
- Wide variety of dual-element probes can be used for nearly any application.
- Bar graph with user-set start end values providing highest resolution around the target thickness value.
- Differential Mode allows user to set a "target thickness value" and display will show the DIFFERENCE between actual and target thickness as a plus
or minus value.
- Includes NIST-Traceable Calibration.
- Adjustable Gain in 5 steps (VLow, Low, Med, Hi & VHi) in 2db increments providing a 8 db gain adjust range (42?50 db).
- 64 custom setups can be stored and retrieved for convenient use and labeled for easy identification
- Display Hi/Lo Alarm Limits with audible and visual indicators.
- 2 Year Warranty for Gauge (90 days for probe)
- Metal housing provides strong protection against harsh environments.
- Measures Coatings up to 0.100"
- CE Certified
- IP 65 Rated
- The TI-CMXDL is supplied as a complete kit with the gauge, probe, 4 oz. bottle of coupling fluid, 2 AA batteries, NIST-Traceable Calibration Certificate,
operating manual, Software, RS-232 output cable, RS-232 to USB adapter, all in a foam-fitted carrying case.
Specifications
- Range in Steel (Pulse-Echo Mode): Pit and Flaw detection measures from 0.025 - 9.999inches (0.63 to 254 millimeters)
- Range in Steel (Echo-Echo Mode): Thru Paint & coatings measures from 0.100 - 4.000 inches (2.54 to 102 mm). Range will vary depending on the
thickness
- Range in Coating Only Mode: 0.0005" - 0.1000" / Resolution: 0.0001" (0.013 - 2.540 mm / Resolution: 0.001 mm)
- Max Coating: 0.100"
- Resolution: 0.001 inches (0.01mm)
- Velocity Range: 0.0492 to 0.3936 in./ms. 1250 to 9999 meters/sec
- Transducer Types: Dual Element (1 to 10 MHz).
- Output: RS-232 for upload/download of setups
- Memory capacity: over 200,000 measurements
- Power Source:Three 1.5V alkaline or 1.2V NiCad AA cells
- Battery Life: Typically operates for 150 hours on alkaline and 100 hours on NiCad
- Auto Power off: After 5 minutes of non-use
- Display: 1/8 in. VGA grayscale display 62 x 45.7mm
- Keyboard: Membrane switch with twelve tactile keys
- Case: Extruded aluminum body with nickel-plated aluminum end caps (gasket sealed).
- Temp. Limits (Ambient): -20 to 120 F (-30 to 50 C)
- Temp. Limits (Material): -0 to 200 F (-20 to 100 C)
- Weight (Net):383 grams
- Dimensions: 63.5 W x 165 H x 31.5 D mm
- Warranty: 2 Year Warranty for Gauge (90 days for probe)
- Certification: CE Approved, Factory calibration traceable to national standards
Warranty:
- 2 Year Manufacturer Warranty + Additional 1 Year Instrument Choice Warranty for the gauge; 90 days warranty for the probe
